Headlamp: Adjustments

ADJUSTMENT

1. HEADLIGHT AIMING

CAUTION: Turn off the light before adjusting the headlight aiming. If it is necessary to inspect the aiming, do not turn on the lamp for more than two minutes.

NOTE: Before checking the headlight beam level, be sure of the following:

- The area around the headlight does not have any scratch, damage or other type of deformation.
- Vehicle is parked on a level surface.
- The inflation pressure of tires is correct.
- Vehicle's fuel tank is full.
- Bounce the vehicle several times to normalize the suspension.
- Make certain that someone is seated in the driver's seat.

1. Cover the headlight that is not being adjusted with a cloth.

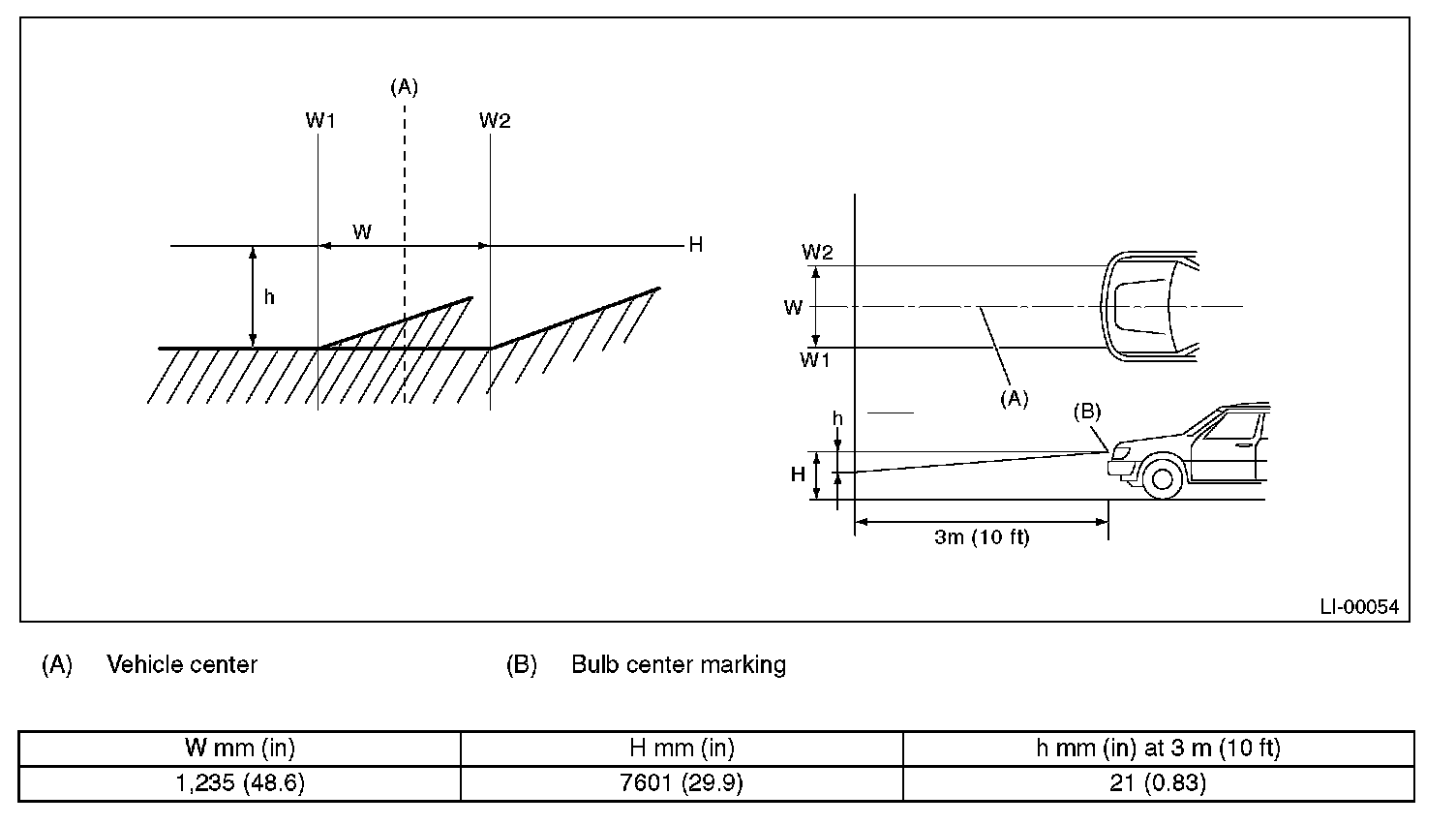

2. Turn the headlights on and then adjust the low beam while displaying the beam on the screen.

Headlight Assembly:

NOTE: Adjust the vertical beam level (A) first, then horizontal beam level (B) using a screwdriver.
