Cruise Cancel Conditions Diagnosis

CRUISE CANCEL CONDITIONS DIAGNOSIS

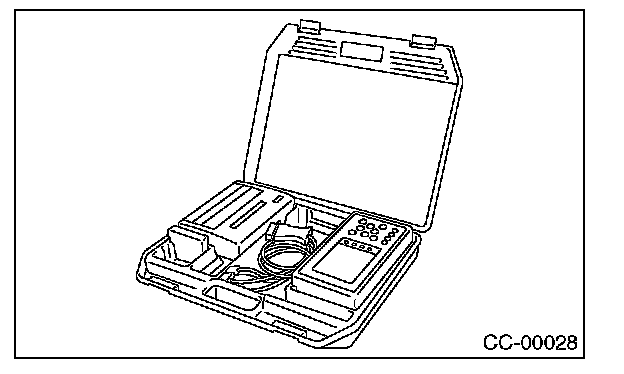

1. Prepare the Subaru Select Monitor kit.
2. Connect the diagnosis cable to Subaru Select Monitor.

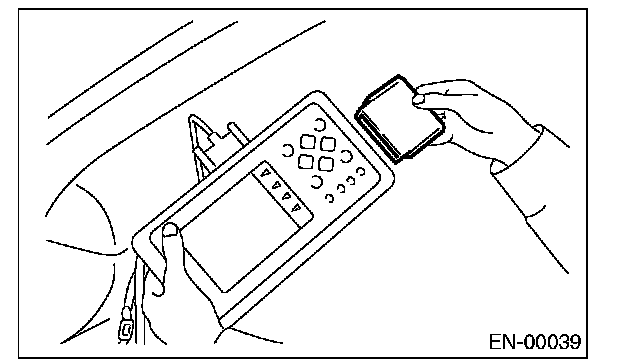

3. Insert the cartridge into Subaru Select Monitor.
4. Connect the Subaru Select Monitor to data link connector.

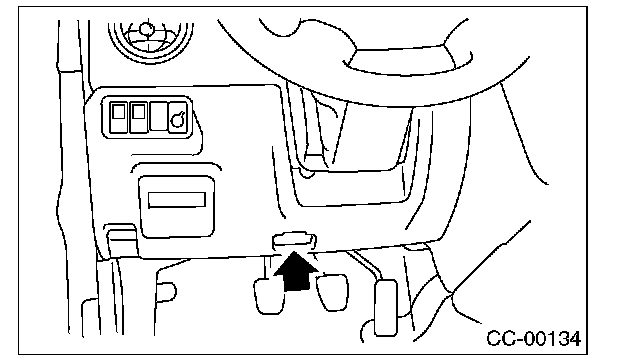

1. Data link connector is located in the lower portion of the instrument panel (on the driver's side).
2. Connect the diagnosis cable to data link connector.

5. Start the engine and turn the cruise control main switch to ON.

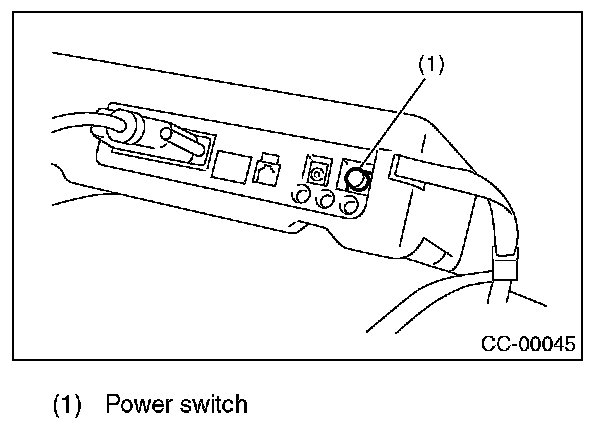

6. Turn the Subaru Select Monitor power switch to ON.
7. On the Main Menu display screen, select the {2. Each System Diagnosis} and press [YES] key. Select the {Engine} on the System Selection display screen and press [YES] key. Press [YES] key after the engine type displayed.
8. Drive the vehicle at least 40 km/h (25 MPH) with cruise speed set.
9. If the cruise speed is canceled itself (without doing any cancel operations), a DTC will appear on the display after {Cancel Code(s) Display} is selected on the Engine Diagnosis display screen and [YES] key is pressed.

CAUTION:
- When performing diagnostics, observe the legal speed of the road.
- A DTC will also appear when cruise cancel is effected by driver. Do not confuse.
- Have a co-worker ride in the vehicle to assist in diagnosis during driving.

NOTE: DTC will be cleared by turning the ignition switch or cruise control main switch to OFF.
