Air Filter Element: Service and Repair
Air Cleaner ElementREMOVAL

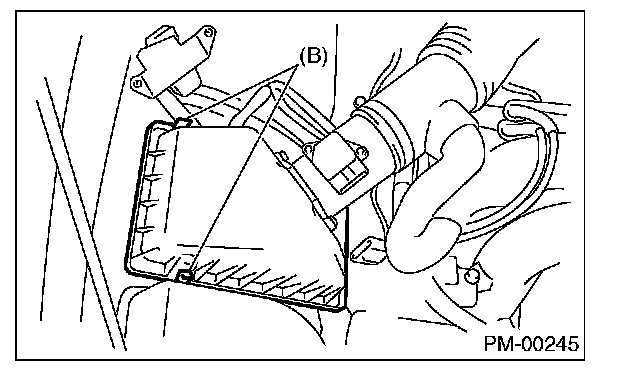

1. Remove the clip (B) above air cleaner case.

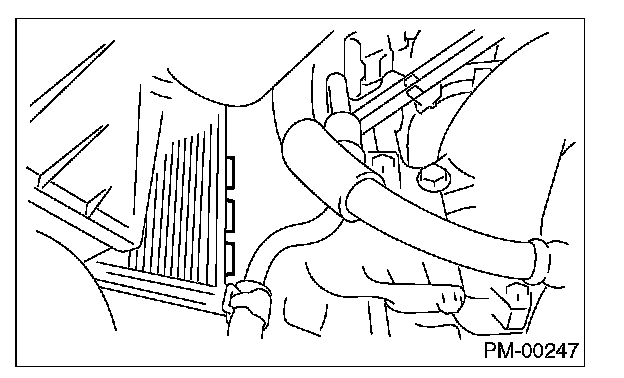

2. Remove the air cleaner element.
INSTALLATION
Install in the reverse order of removal.
NOTE: Fasten it with a clip after inserting the lower tab of case.
