Forward Brake

CONSTRUCTION

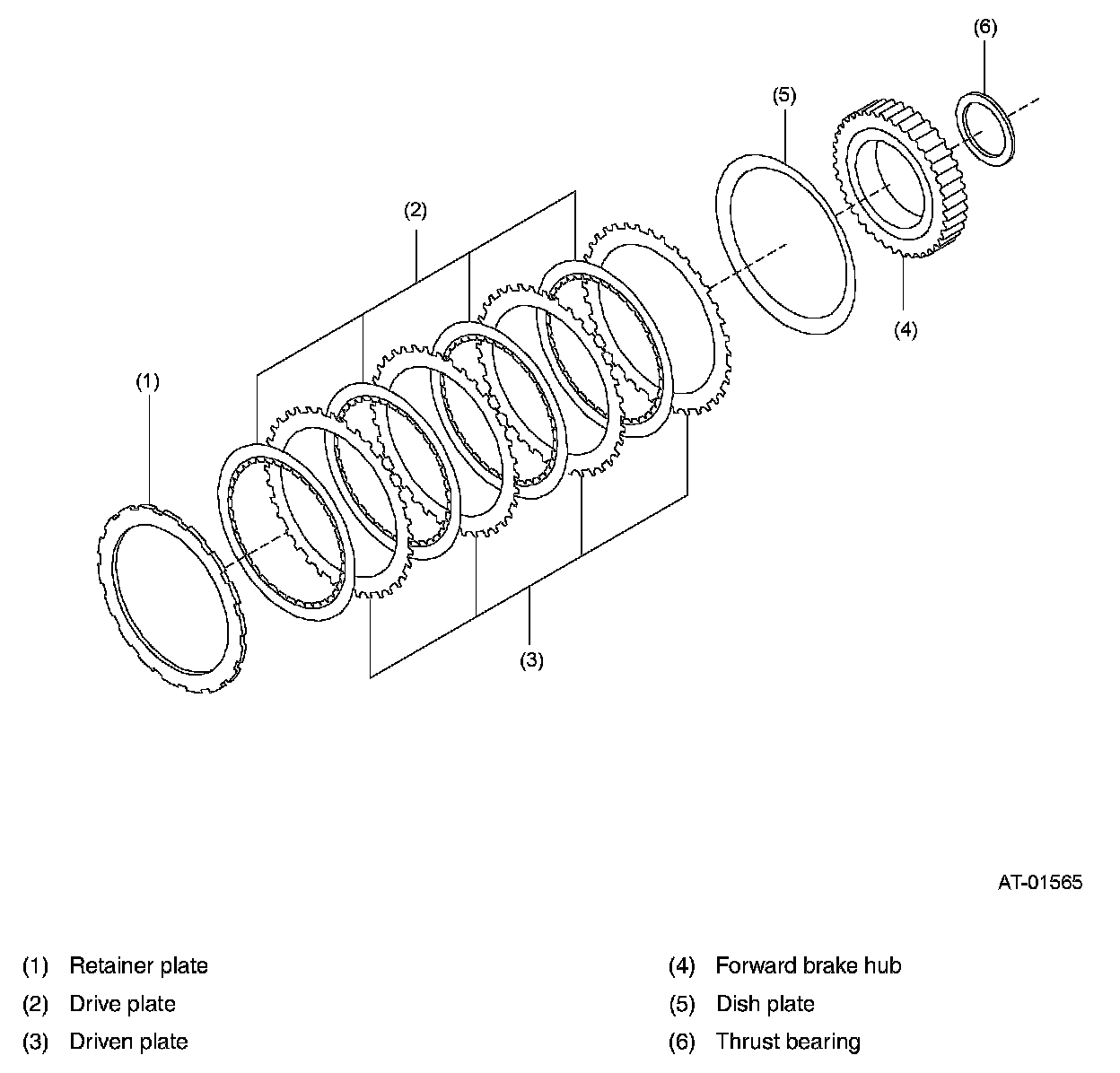

The forward brake consists of a forward brake hub, forward brake piston, dish plate, drive plates, driven plates, and a retaining plate.

The forward brake restricts the reverse rotation of the mid sun gear in 1st and 2nd speeds. (The forward brake cannot be disassembled.)
