Fuel Tank Pressure Sensor: Service and Repair
Fuel Tank Pressure SensorREMOVAL
1. Set the vehicle on a lift.
2. Open the fuel filler flap lid, and remove the fuel filler cap.

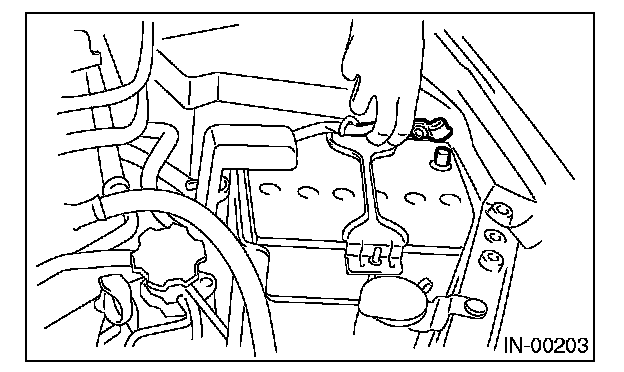

3. Disconnect the ground cable from the battery.
4. Lift-up the vehicle.
5. Disconnect the connector from the fuel tank pressure sensor.
6. Disconnect the pressure hose from the fuel tank pressure sensor.

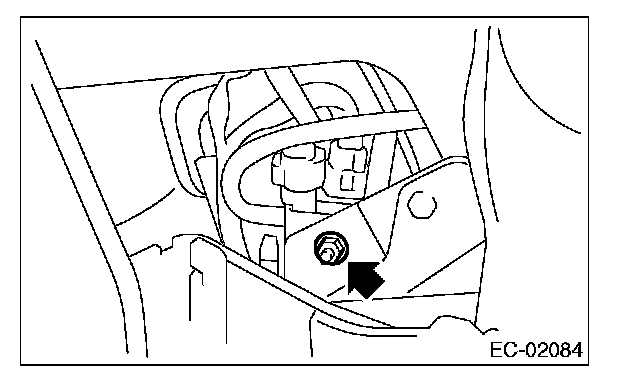

7. Remove the fuel tank pressure sensor along with the bracket.
INSTALLATION

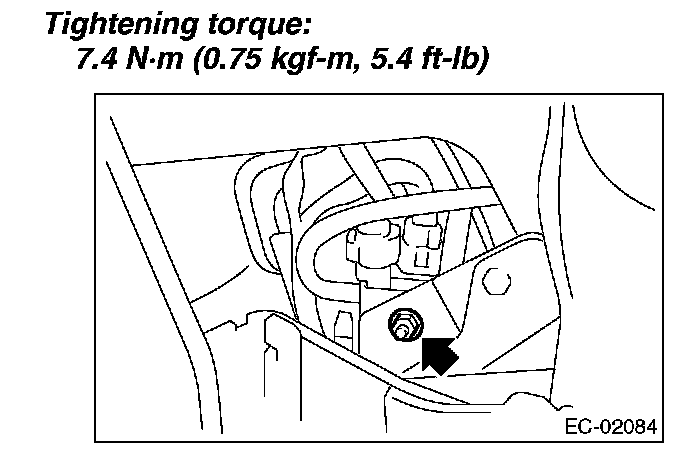

Install in the reverse order of removal.
