Subaru Select Monitor

Subaru Select Monitor

OPERATION
READ DIAGNOSTIC TROUBLE CODE (DTC)
1. Prepare the Subaru Select Monitor kit.





2. Connect the diagnosis cable to the Subaru Select Monitor.
3. Insert the cartridge to the Subaru Select Monitor.





4. Connect the Subaru Select Monitor to the data link connector.

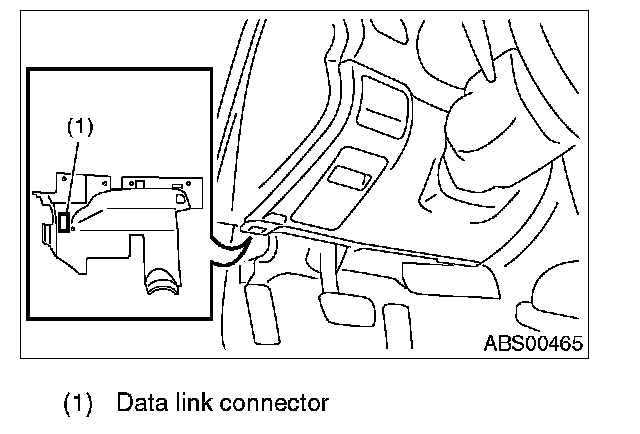

1. The data link connector is located in the lower portion of the instrument panel (on the driver's side).





2. Connect the diagnosis cable to the data link connector.

CAUTION: Do not connect the scan tools other than the Subaru Select Monitor.

5. Turn the ignition switch to ON (engine OFF) and turn the Subaru Select Monitor switch ON.





6. On the [[Main Menu]] display screen, select {Each System Check} and press the [YES] key.
7. On the [[System Selection Menu]] display screen, select {Brake Control} and press the [YES] key.
8. Press the [YES] key after the {ABS} is displayed.

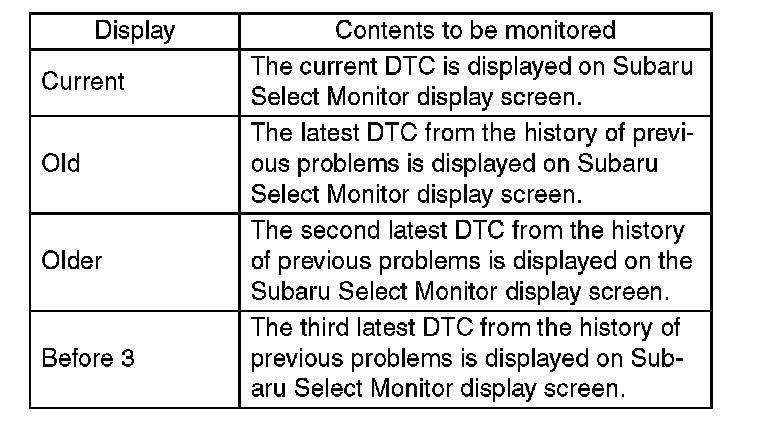

9. On the [[ABS Diagnosis]] screen, select {DTC Display}, and then press the [YES] key.

NOTE:
^ For details concerning the operation procedure, refer to the "SUBARU SELECT MONITOR OPERATION MANUAL".
^ For details concerning DTCs, refer to List of Diagnostic Trouble Code (DTC).
^ Up to 3 DTCs are displayed in the order of detection.
^ If a particular DTC is not stored in memory properly at the occurrence of problem (due to a drop in ABSCM & H/U power supply etc.), the DTC suffixed with a question mark "?" is displayed on Subaru Select Monitor display screen. This shows it may be an unreliable reading.

10. If communication is not possible between the ABS and the Subaru Select Monitor, check the communication circuit.





READ CURRENT DATA
1. On the [[Main Menu]] display screen, select {Each System Check} and press the [YES] key.
2. On the [[System Selection Menu]] display screen, select the {Brake Control} and press the [YES] key.
3. Press the [YES] key after {ABS} is displayed.
4. On the [[Brake Control Diagnosis]] display screen, select the {Current Data Display/Save}, and then press the [YES] key.
5. On the [[Display Menu]] screen, select the data display method and press the [YES] key.
6. Using the scroll key, scroll the display screen up or down until necessary data is shown.

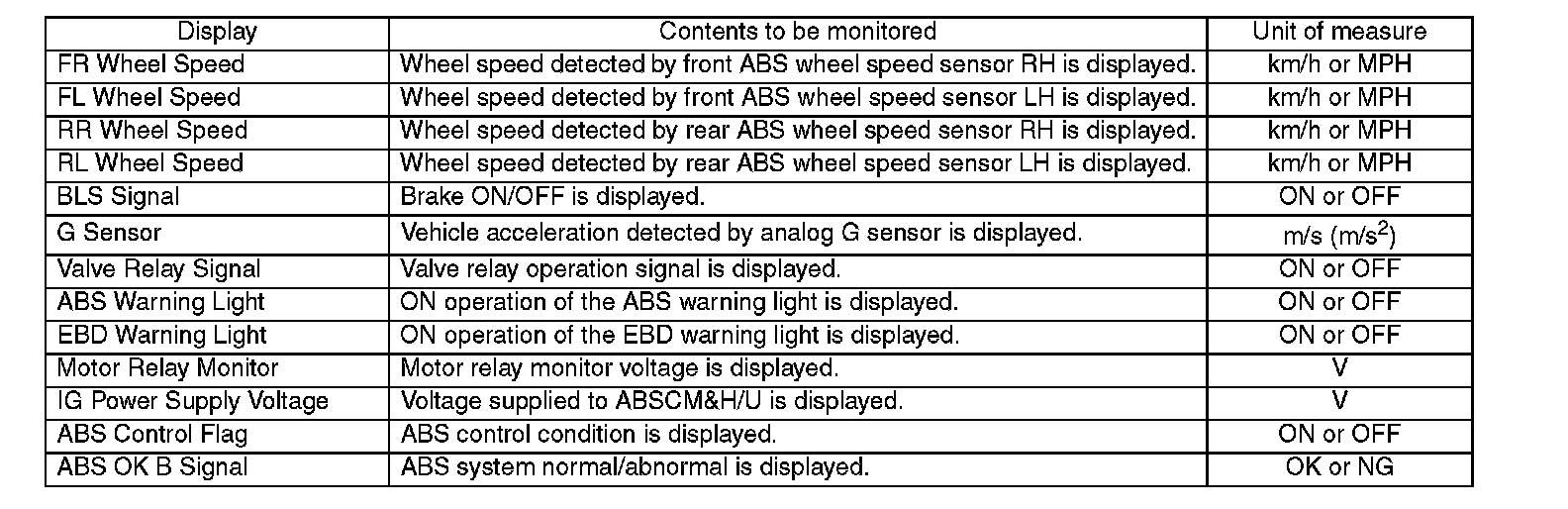

^ A list of the support data is shown in the following table.





NOTE: For details concerning the operation procedure, refer to the "SUBARU SELECT MONITOR OPERATION MANUAL".

CLEAR MEMORY MODE
1. On the [[Main Menu]] display screen, select the {2 Each System Check} and press the [YES] key.
2. On the [[System Selection Menu]] display screen, select the {Brake Control} and press the [YES] key.
3. Press the [YES] key after {ABS} is displayed.

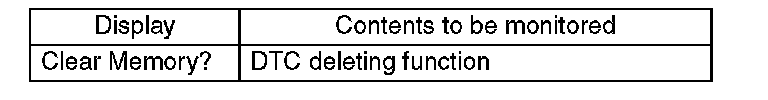

4. On the [[Brake Control Diagnosis]] display screen, select {Clear Memory} and press the [YES] key.





5. When "Done" and "Turn ignition switch OFF" is shown on the display screen, turn the Subaru Select Monitor and ignition switch OFF.

GNOTE: For details concerning the operation procedure, refer to the "SUBARU SELECT MONITOR OPERATION MANUAL".

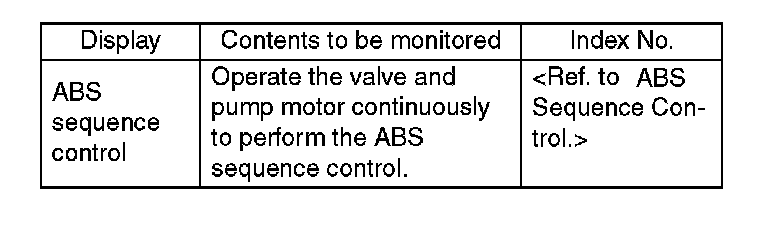

ABS SEQUENCE CONTROL





FREEZE FRAME DATA

NOTE:

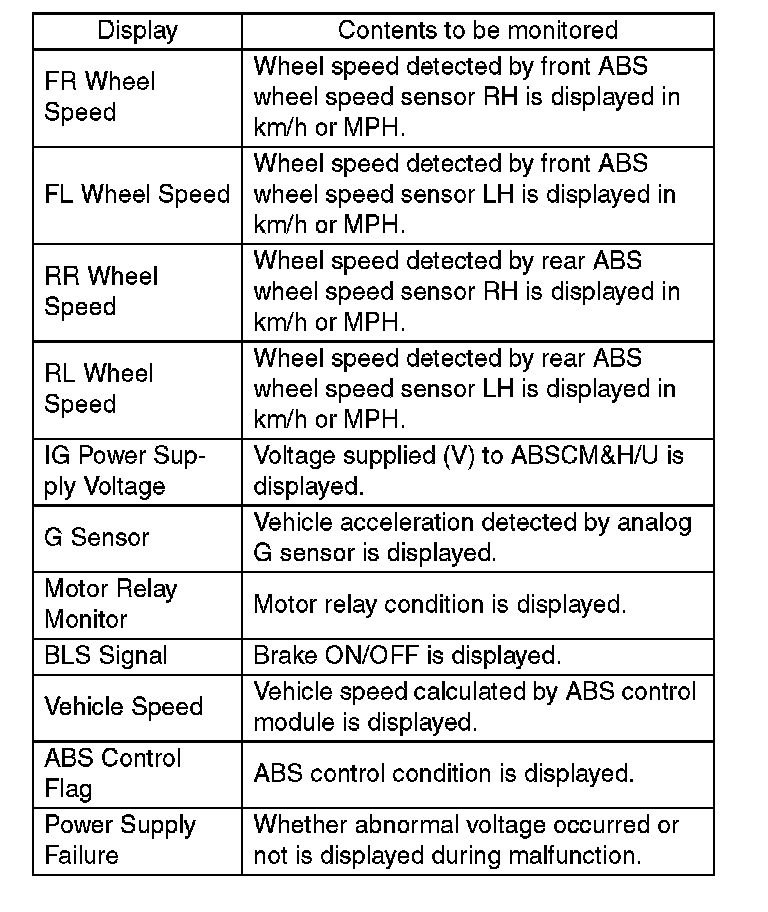

^ Data stored at the time of trouble occurrence is shown on the display.
^ Each time a trouble occurs, the latest information is stored in the freeze frame data in memory.
^ Up to 3 freeze frame data will be stored.
^ If freeze frame data is not stored in memory properly (due to a drop in ABS control module power supply etc.), a DTC suffixed with a question mark "?" is displayed on Subaru Select Monitor display screen. This shows it may be an unreliable reading.
