Engine Mounting

Engine Mounting

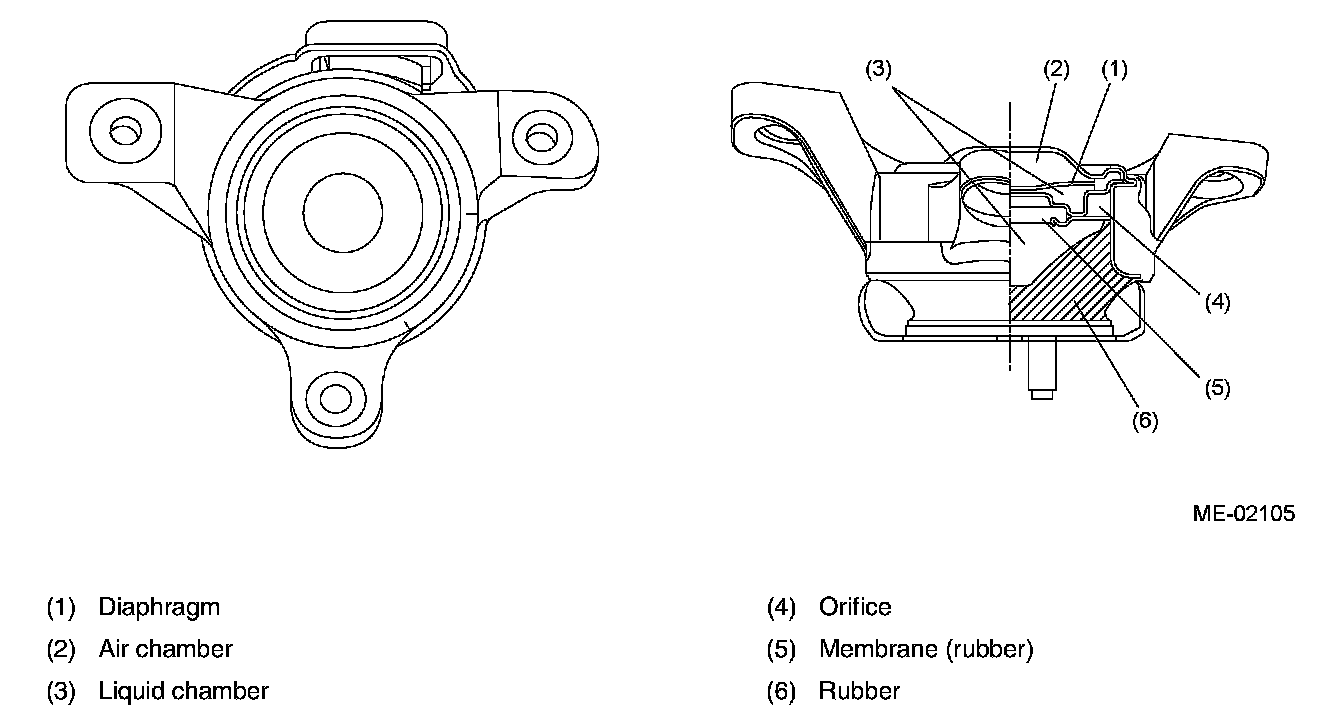

The front cushion rubber for H6 engines hold the engine at three points to increase rigidity. The cushion has an upper and lower liquid chambers inside, and an orifice connects the upper and lower liquid chambers while a diaphragm separates the upper liquid chamber and air chamber. A rubber membrane is also added, and vibration and noise are reduced by optimally tuning its spring constant.
