Front Chain Cover

REMOVAL
1. Remove the crank pulley.





2. Remove the front chain cover.

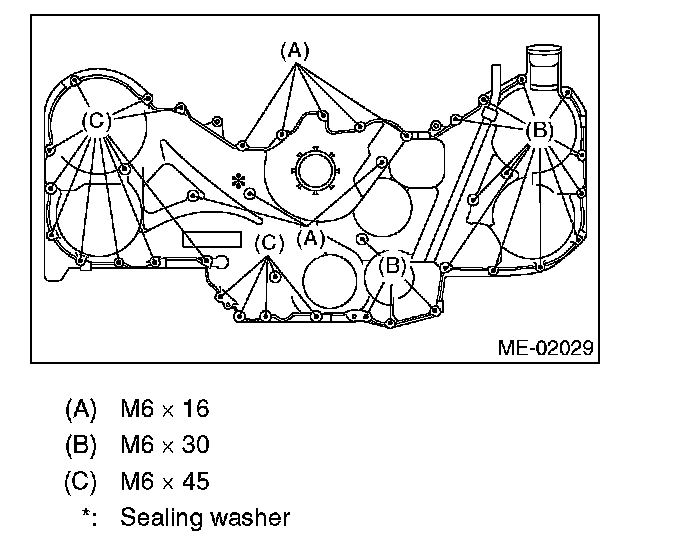

NOTE: Chain cover installation bolt has three different sizes. To prevent the confusion in installation, keep these bolts on container individually.

INSTALLATION
1. Remove the used liquid gasket from mating surface, and degrease it.

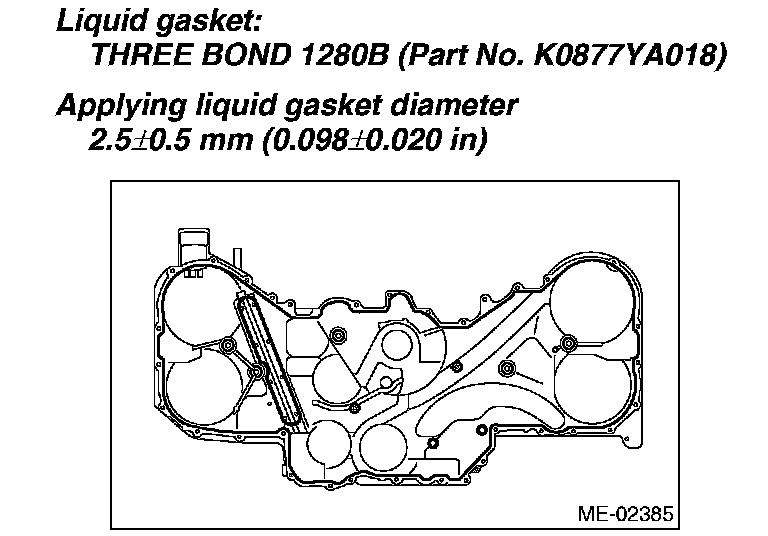

2. Apply liquid gasket to the matching surface of front chain cover.





3. Install the front chain cover. Temporarily tighten the bolts.

CAUTION: Do not install the bolts in wrong place.

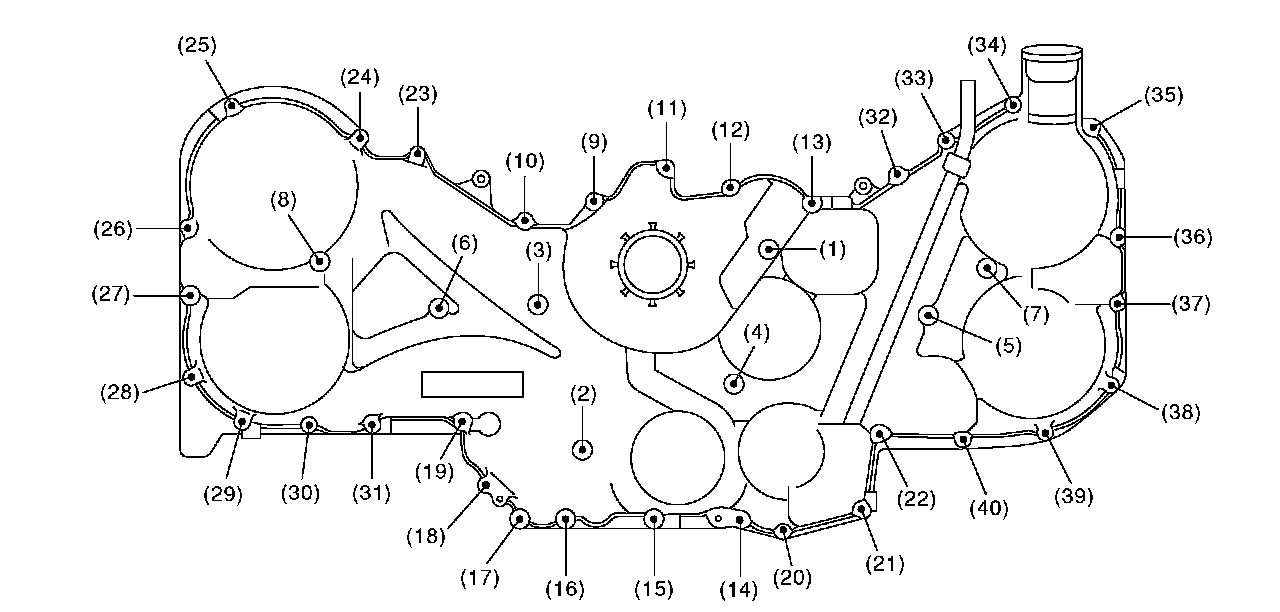

4. Tighten the bolts in the numerical order as shown in the figure.
Tightening torque: 6.6 Nm (0.67 kgf-m, 4.8 ft. lbs.)
5. Install the crank pulley.

INSPECTION
Check the cover surface for scratch and damage. Check for oil leakage on cover mating surface and installation part of crank pulley.
