Exhaust System: Description and Operation

General

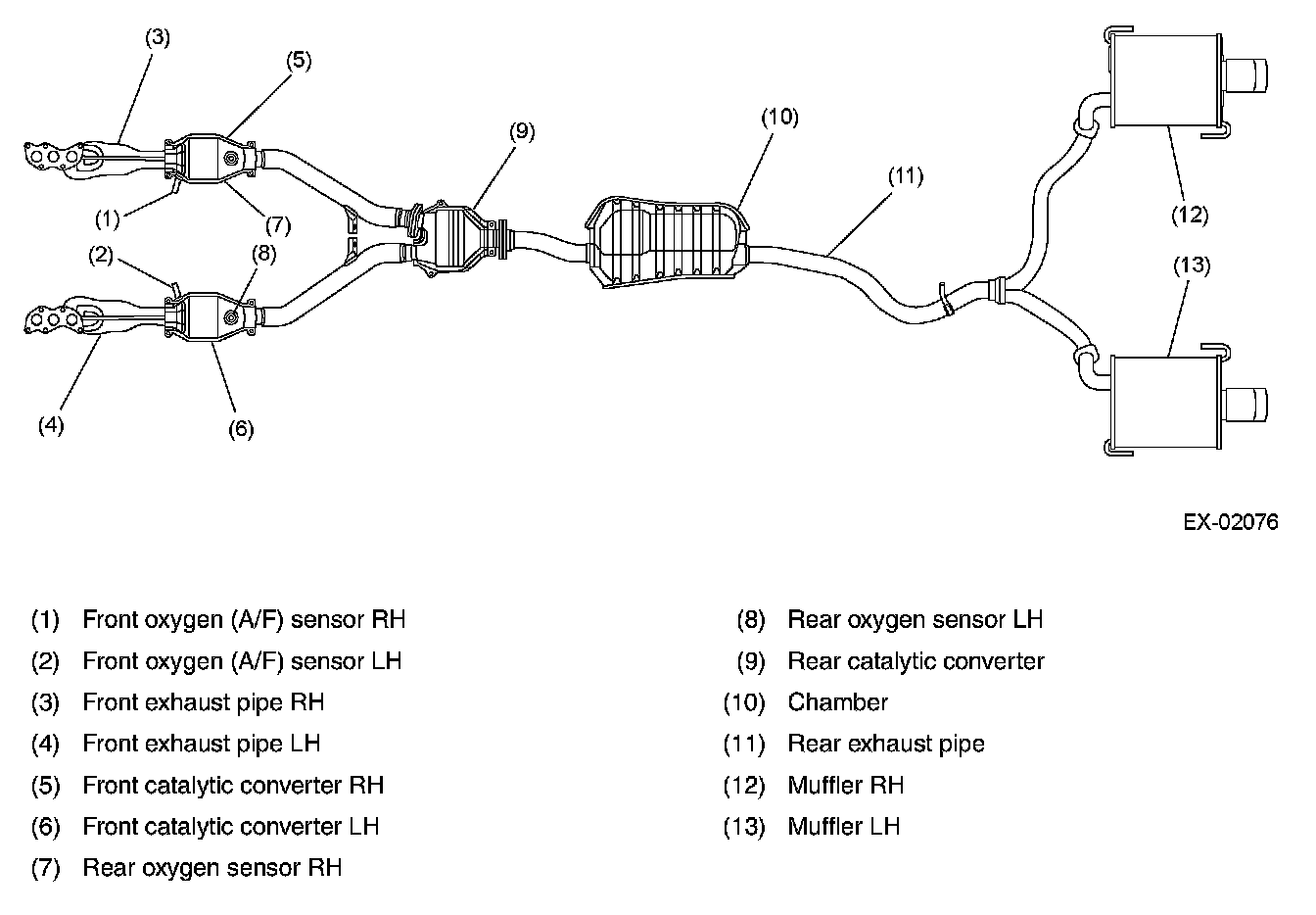

- The exhaust system consists of a front exhaust pipe assembly, a rear exhaust pipe with a resonance chamber, and a muffler.
- The front exhaust pipe assembly consists of right and left exhaust pipes each incorporating a front catalytic converter, and a rear catalytic converter that is located at the joint of the two pipes.
- The exhaust system features an excellent sound suppression design; the rear exhaust pipes have a large capacity chamber and twin mufflers.
