Removal and Installation

Combination Meter

REMOVAL
1. Disconnect the ground cable from battery.
2. Set the tilt steering at the lowest position.
3. Remove the instrument panel lower cover.

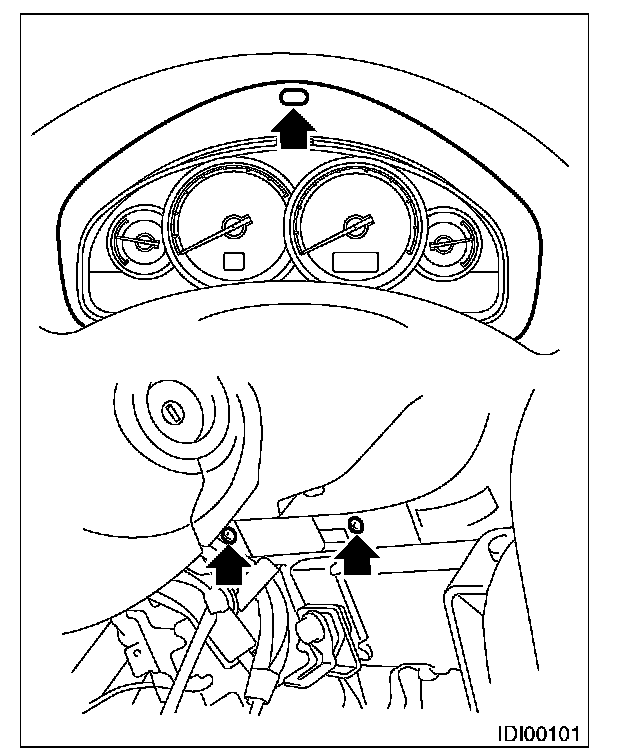

4. Remove the screws of combination meter (one for upper side, two for lower side) and pull tilting the meter toward you.
5. Disconnect the connector in the rear side of combination meter to remove meter.

CAUTION:
- Be careful not to damage the meter or instrument panel.
- Pay particular attention to avoid damaging the meter glass.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- Make sure the electrical connector is connected securely.
- Make sure that each meter operates normally.
- When the combination meter of model with immobilizer has been replaced, be sure to perform the registration procedure of immobilizer.
