Ambient Temperature Sensor / Switch HVAC: Service and Repair
Ambient Sensor (Auto A/C Model)REMOVAL
1. Open the front hood.
2. Disconnect the ground cable from battery.
3. Disconnect the ambient sensor connector.

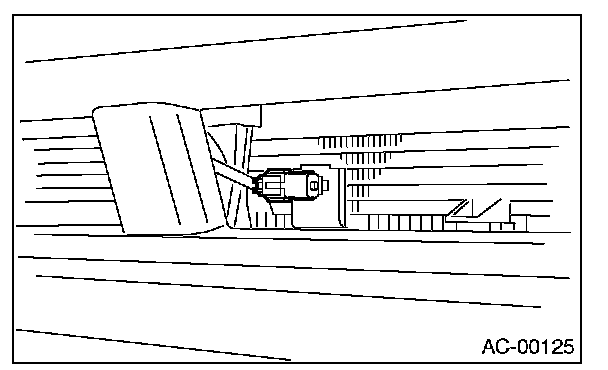

4. Remove the ambient sensor from the radiator lower panel.
INSTALLATION
Install in the reverse order of removal.
