A/T - 4AT, Filter/Torque Specification Revision

NUMBER: 16-75-09

DATE: 04/08/09

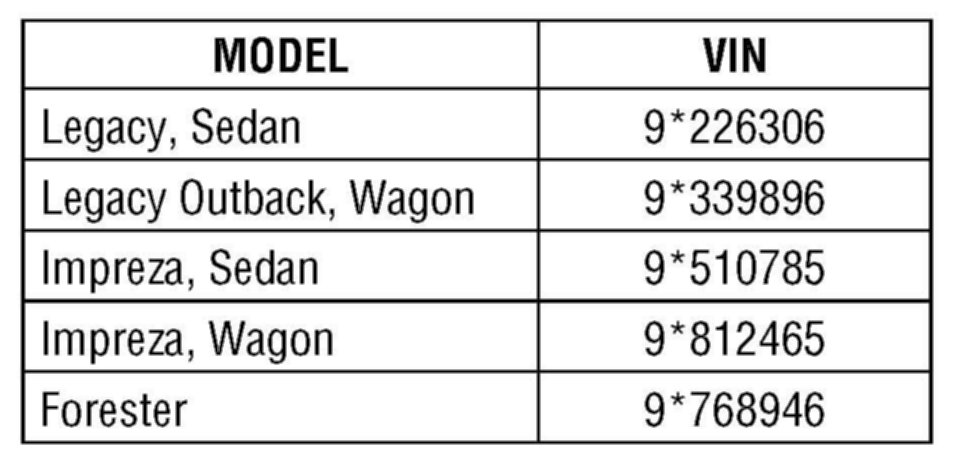

APPLICABILITY

SUBJECT:
4AT Automatic Transmission Strainer

Introduction

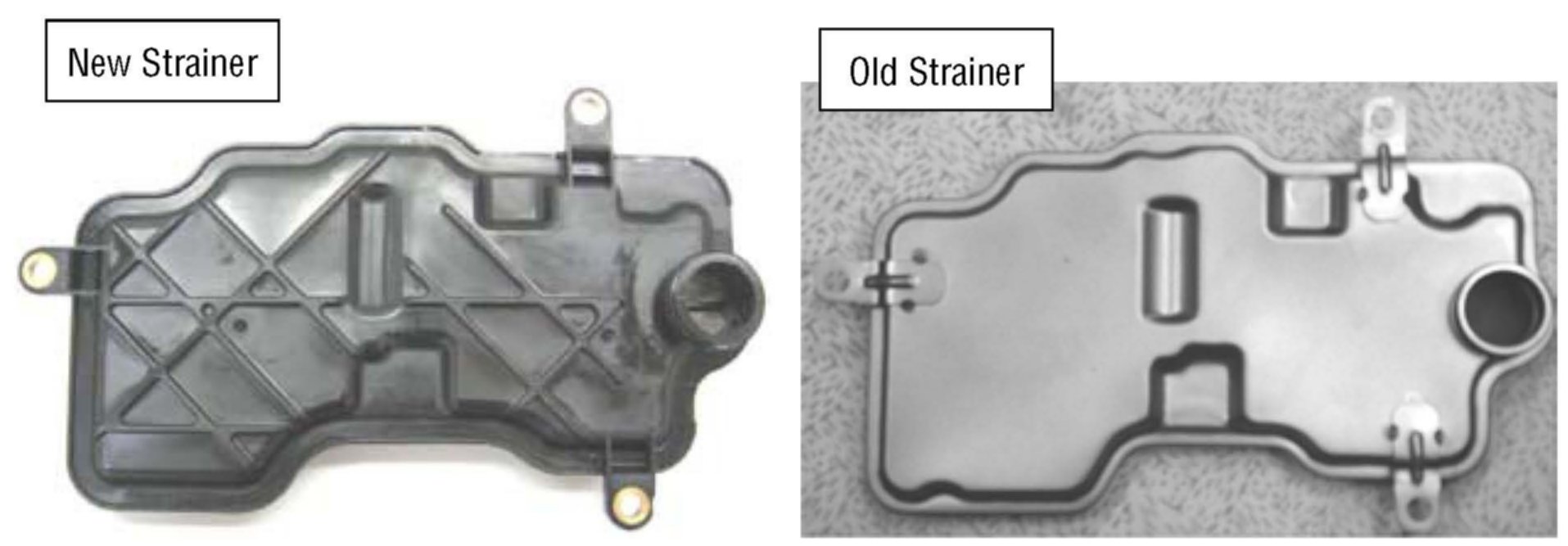

The purpose of this bulletin is to inform you that the automatic transmission strainer has changed from being made out of metal to resin. The length of the bolts and the torque specification has also changed.

Countermeasure in Production





The new style strainer was used in production towards the end of October, 2008 starting with transmission # 374122.

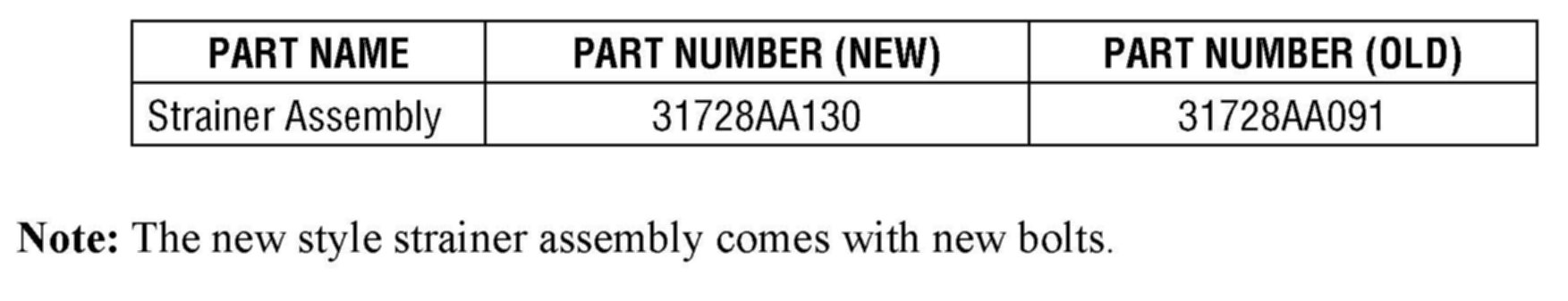

Part Information

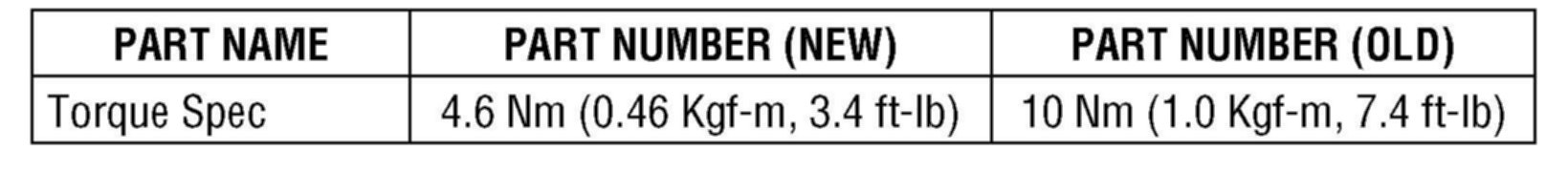

Torque Specification

Interchangeability

The strainers are interchangeable for the models listed; however the correct bolts and torque specification must be used depending upon what strainer is installed.
