Fuse: Locations

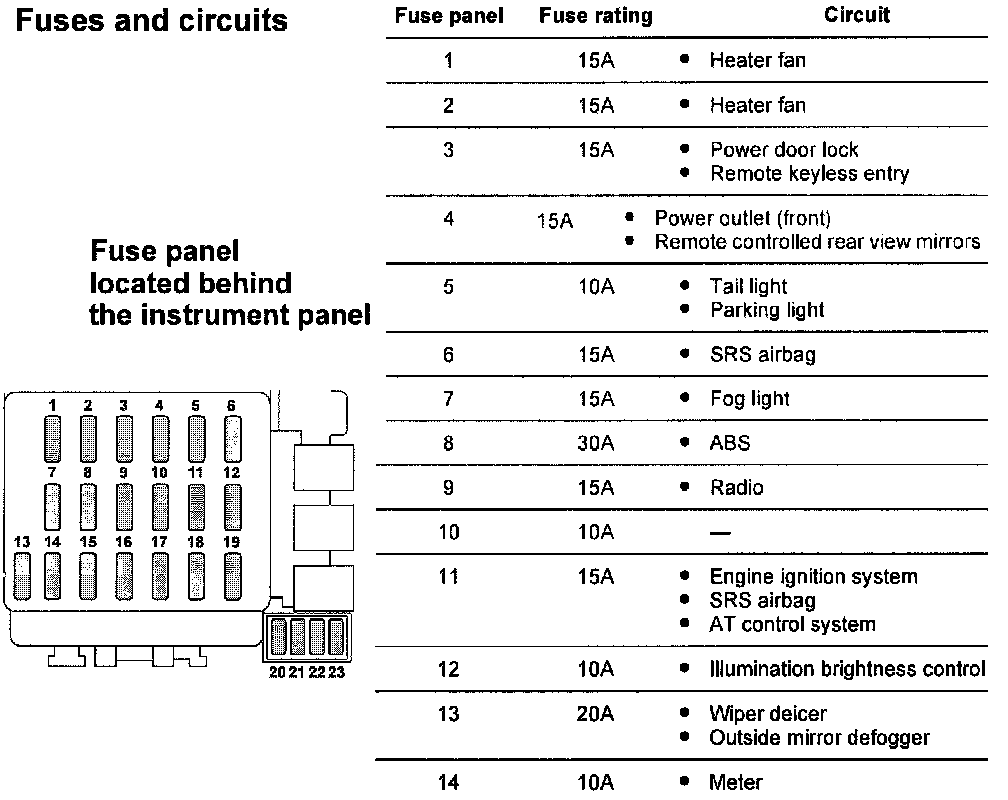

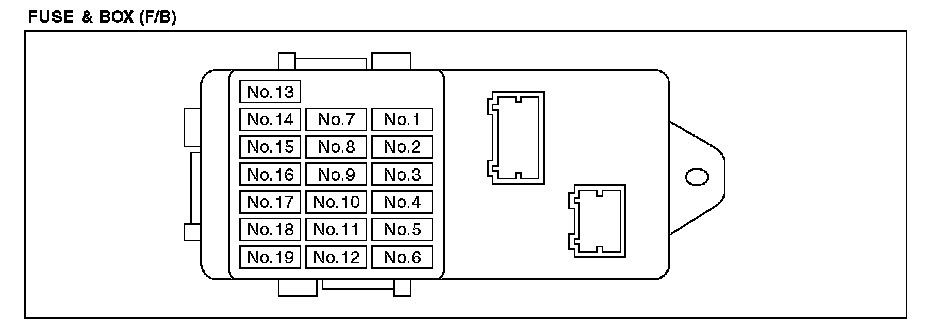

Fuse Panel Located Behind Instrument Panel:

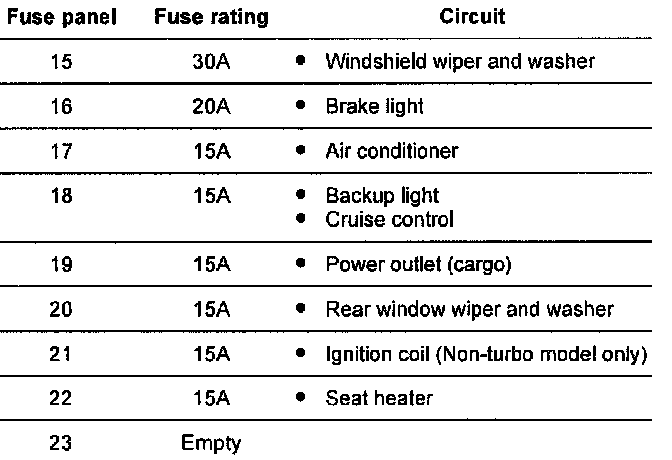

Fuse Circuit Description(continued):

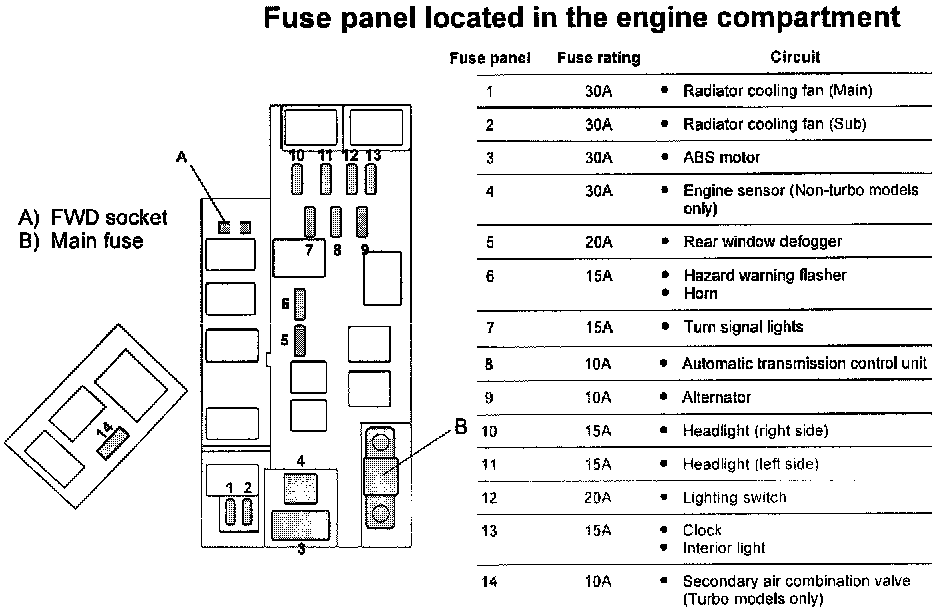

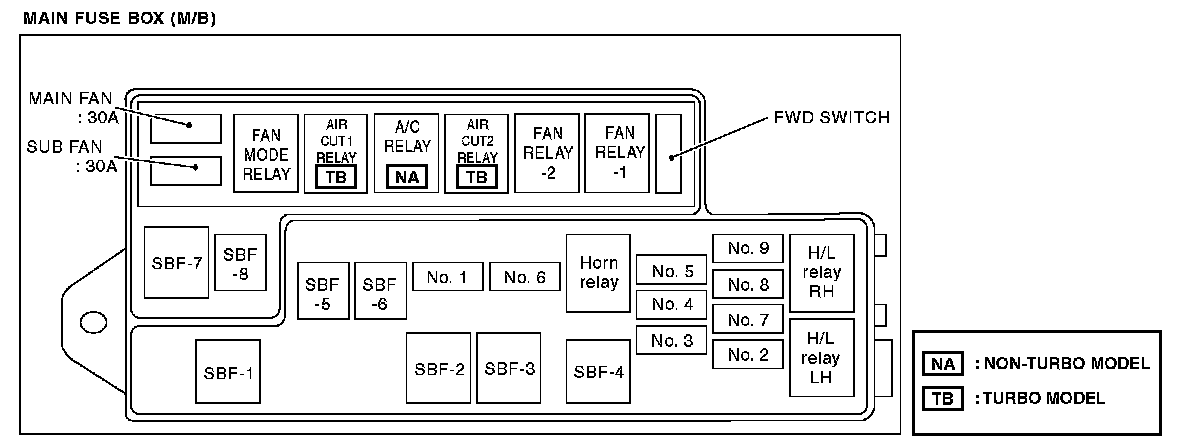

Fuse Pane Located In Engine Compartment:
