PCV Valve Hose: Service and Repair

PCV HOSE ASSEMBLY

REMOVAL

CAUTION: Do not remove other parts if the PCV hose, diagnostics connector and PCV valve are damaged.

1. Remove the air intake chamber.

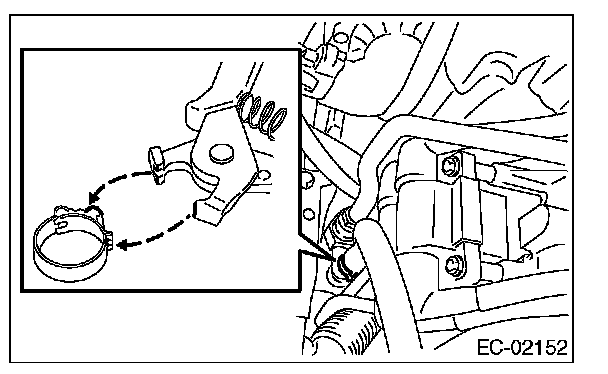

2. Fit the depression in the ST with the protrusion on the clamp to unlock.




3. Remove the PCV hose assembly.

ST 18353AA000 CLAMP PLIERS

INSTALLATION

NOTE: Replace the clamp with a new one.

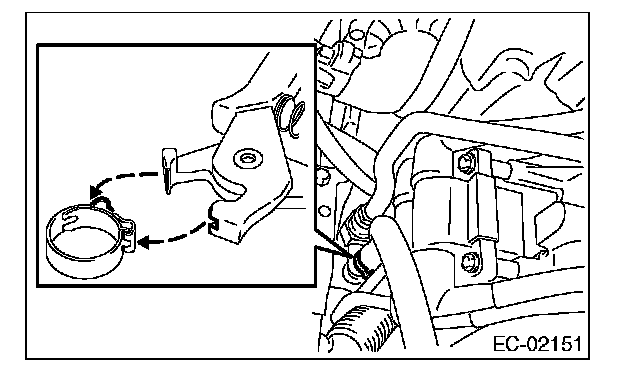

1. Install the PCV hose assembly, then lock by fitting the ST on the clamp protrusion.

ST 18353AA000 CLAMP PLIERS

2. Install the air intake chamber.
