Operation

OPERATION

The DCCD system has the following 2 modes: MANUAL MODE and AUTO MODE. In MANUAL MODE, as the operation amount of DCCD control dial (driver's will) is prioritized, the control that increases/decreases the engagement power of solenoid clutch LSD is performed. In AUTO MODE, the control that automatically adjusts the engagement power of solenoid clutch LSD corresponding to the input signals of steering angle sensor or yaw rate and lateral G sensor is performed.

NOTE: The solenoid clutch LSD controls the differential control within the range of 30 to 100% [which excludes the differential control (0 - 30%) of the mechanical LSD].

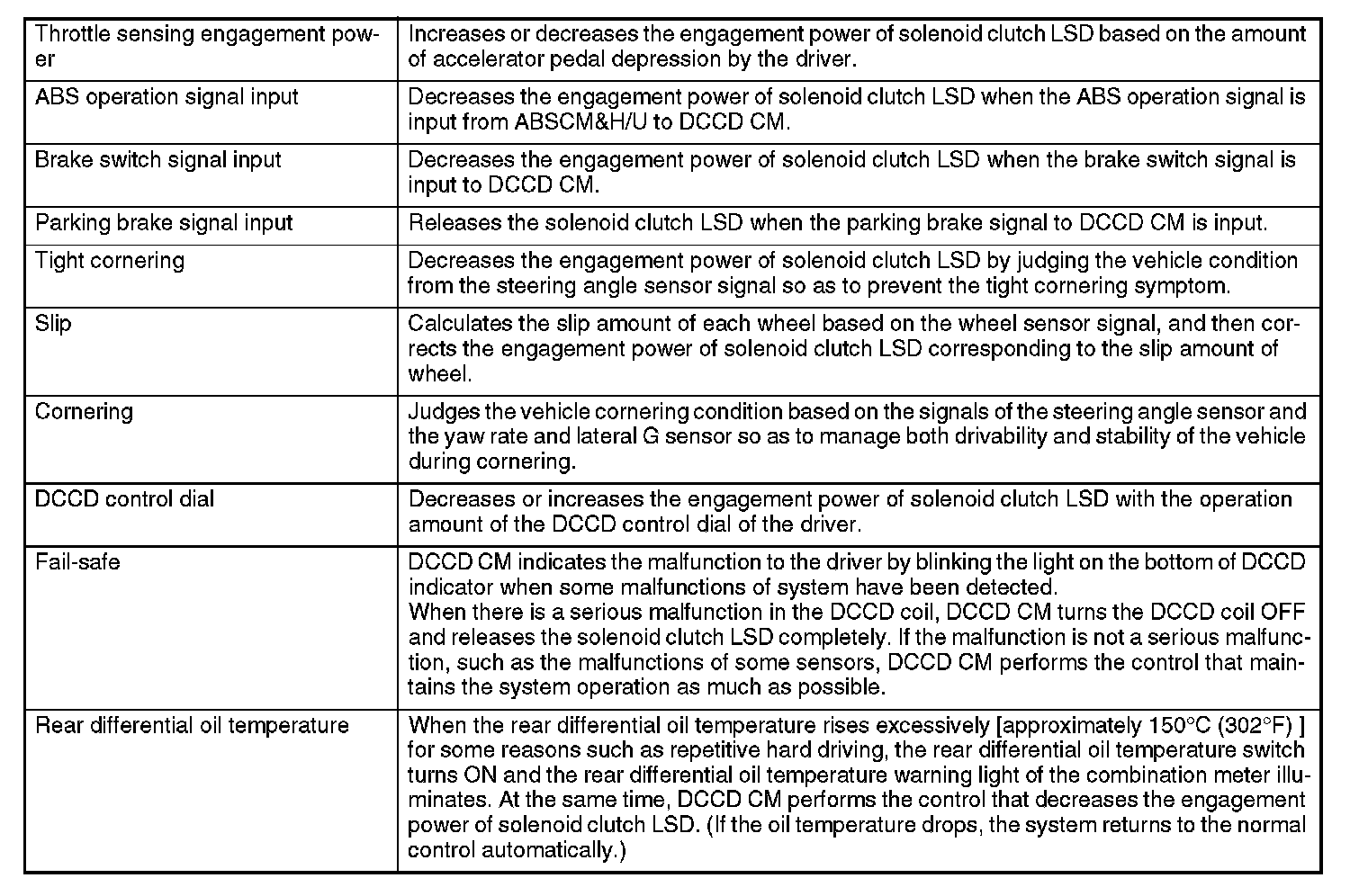

Control of DCCD control module
