Fuel Injector: Service and Repair

Intake Manifold (Part 1):

Intake Manifold (Part 2):

Fuel Injector

REMOVAL

1. RH SIDE
1. Release the fuel pressure.
2. Remove the collector cover.

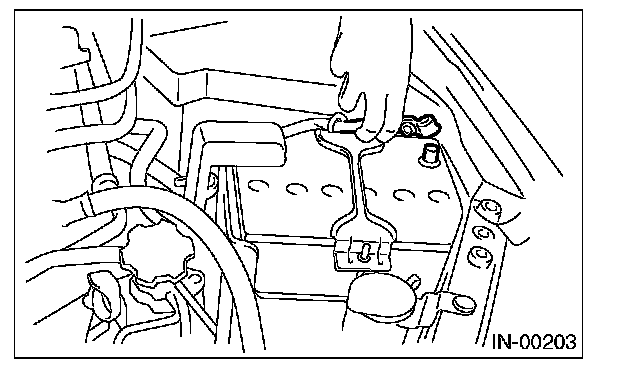

3. Disconnect the ground cable from battery.
4. Open the fuel filler flap lid, and remove the fuel filler cap.
5. Remove the intake manifold.

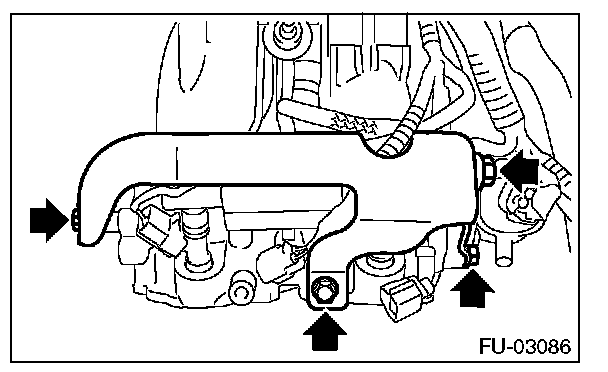

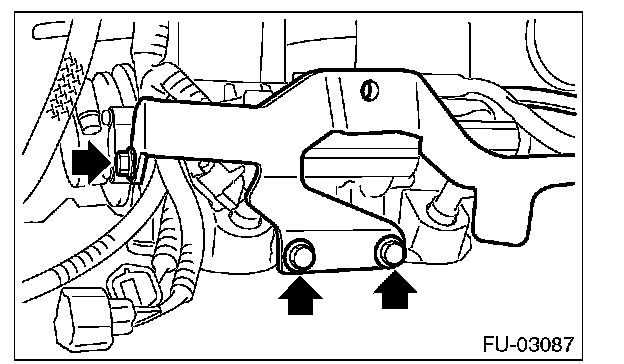

6. Remove the fuel pipe protector RH from the intake manifold.
7. Disconnect the connector from fuel injector.

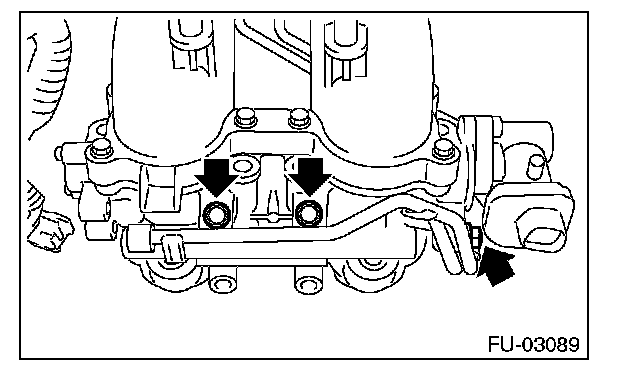

8. Remove the bolt which holds fuel injector pipe onto intake manifold.

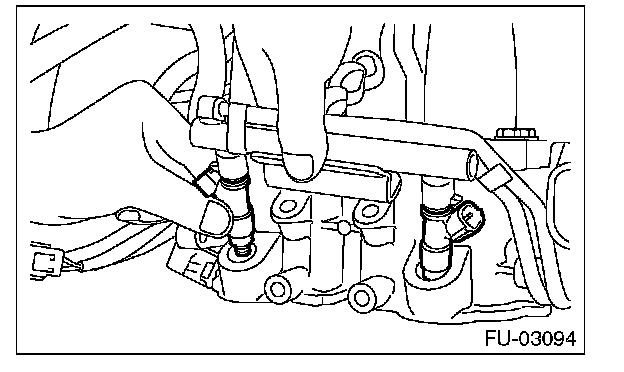

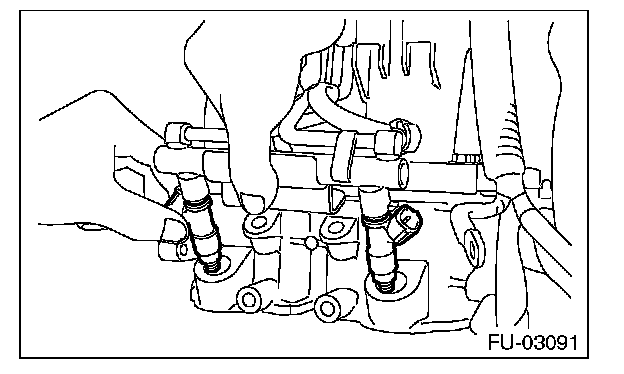

9. Remove the fuel injector.

2. LH SIDE
1. Release the fuel pressure.
2. Remove the collector cover.




3. Disconnect the ground cable from battery.
4. Open the fuel filler flap lid, and remove the fuel filler cap.
5. Remove the intake manifold.




6. Remove the engine ground terminal from the fuel pipe protector LH and remove the fuel pipe protector LH from the intake manifold.
7. Disconnect the connector from fuel injector.

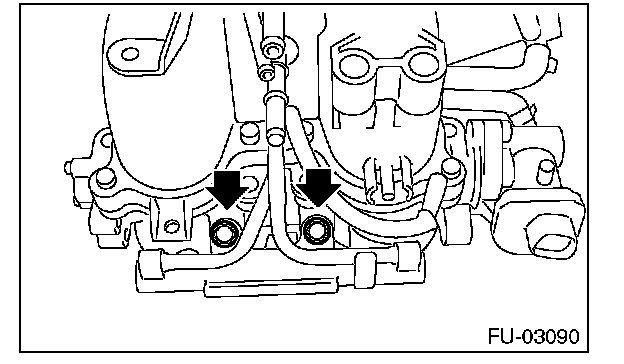

8. Remove the bolt which holds fuel injector pipe onto intake manifold.




9. Remove the fuel injector.

INSTALLATION

1. RH SIDE
Install in the reverse order of removal.

NOTE: Use new O-rings.

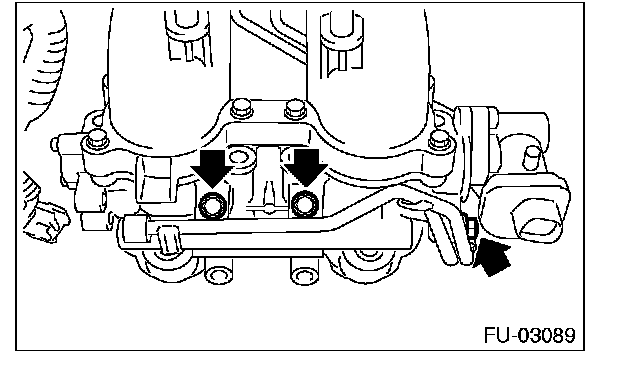

Tightening torque: 19 N.m (1.9 kgf-m, 14 ft-lb)






Tightening torque: 19 N.m (1.9 kgf-m, 14 ft-lb)

2. LH SIDE
Install in the reverse order of removal.

NOTE: Use new O-rings.

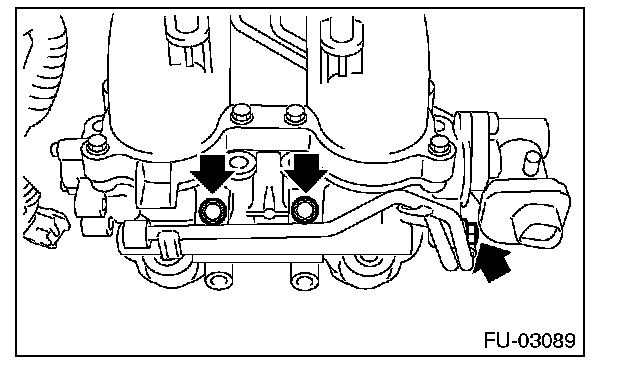

Tightening torque: 19 N.m (1.9 kgf-m, 14 ft-lb)

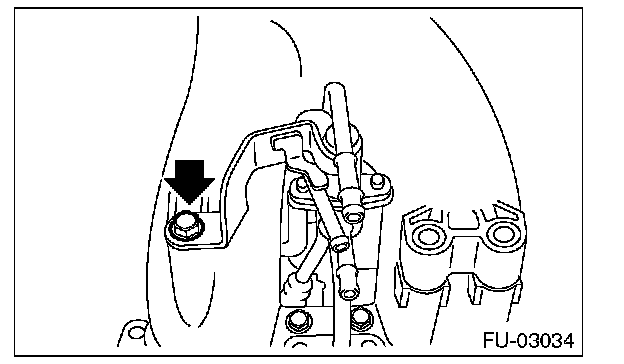

Tightening torque: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)






Tightening torque: 19 N.m (1.9 kgf-m, 14 ft-lb)
