Throttle Body: Service and Repair

Throttle Body

REMOVAL

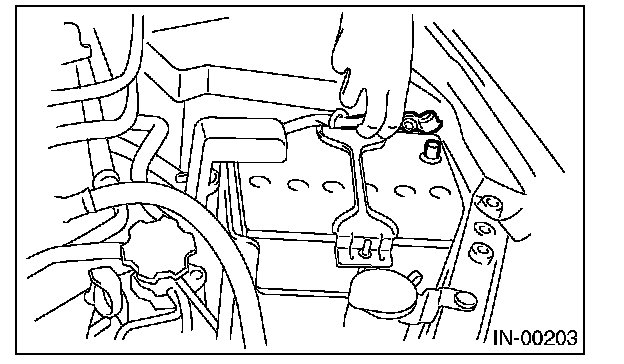

1. Disconnect the ground cable from the battery.
2. Remove the air intake chamber.

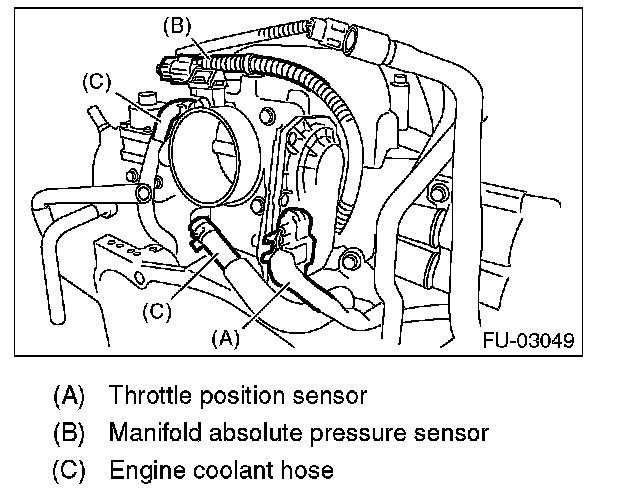

3. Disconnect the connectors from throttle position sensor and manifold absolute pressure sensor.
4. Disconnect the engine coolant hoses from the throttle body.

5. Remove the bolts which secure the throttle body to the intake manifold.

INSTALLATION
Install in the reverse order of removal.

NOTE: Use a new gasket.

Tightening torque: 8 N.m (0.8 kgf-m, 5.9 ft-lb)
