Oil Charge Pipe

Oil Charge Pipe

REMOVAL
1. Remove the air intake chamber.





2. Remove the oil charge pipe, and then remove the O-ring from flange side.

INSTALLATION





1. Install the oil charge pipe with a new O-ring applied with ATF.

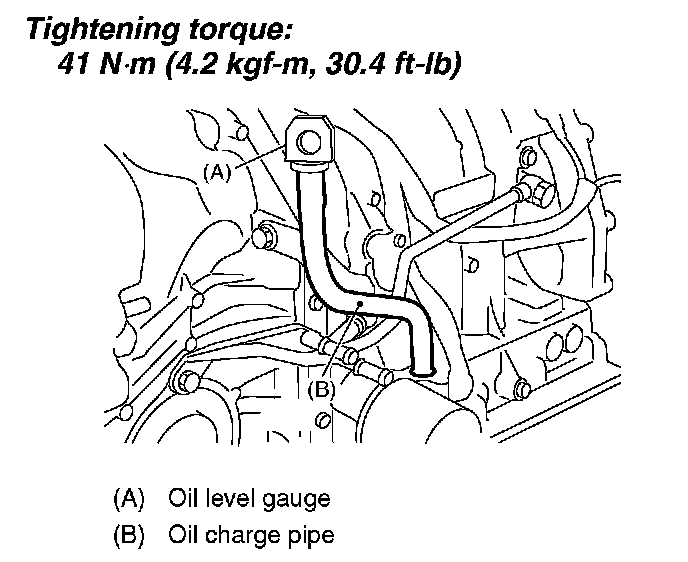

Tightening torque: 41 Nm (4.2 kgf-cm, 30.4 ft. lbs.)
2. Install the air intake chamber.

INSPECTION
Make sure the oil charge pipe is not deformed or damaged.
