Antenna: Service and Repair

REPAIR
1. Clean the antenna wire and surrounding area with a cloth dampened by alcohol.

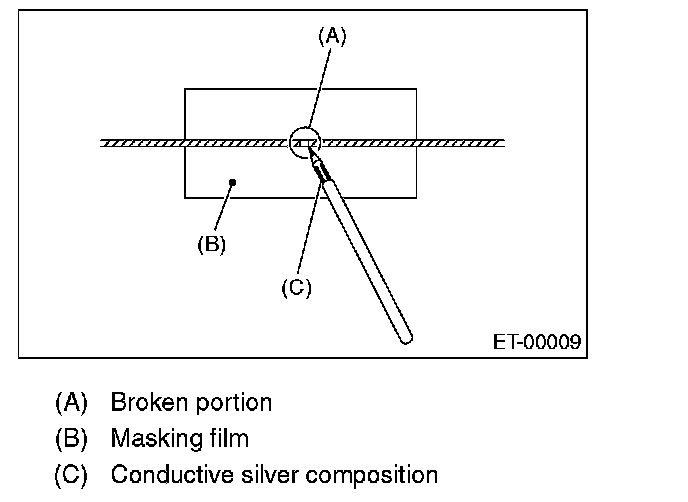

2. Paste a thin masking film on the glass along broken wire.




3. Deposit conductive silver composition (DUPONT No. 4817) on the broken portion with a drawing pen.
4. Dry out the deposited portion.
5. After repair has been completed, measure the resistance in repaired wire.
