Fog/Driving Lamp: Adjustments
Front Fog Light AssemblyADJUSTMENT

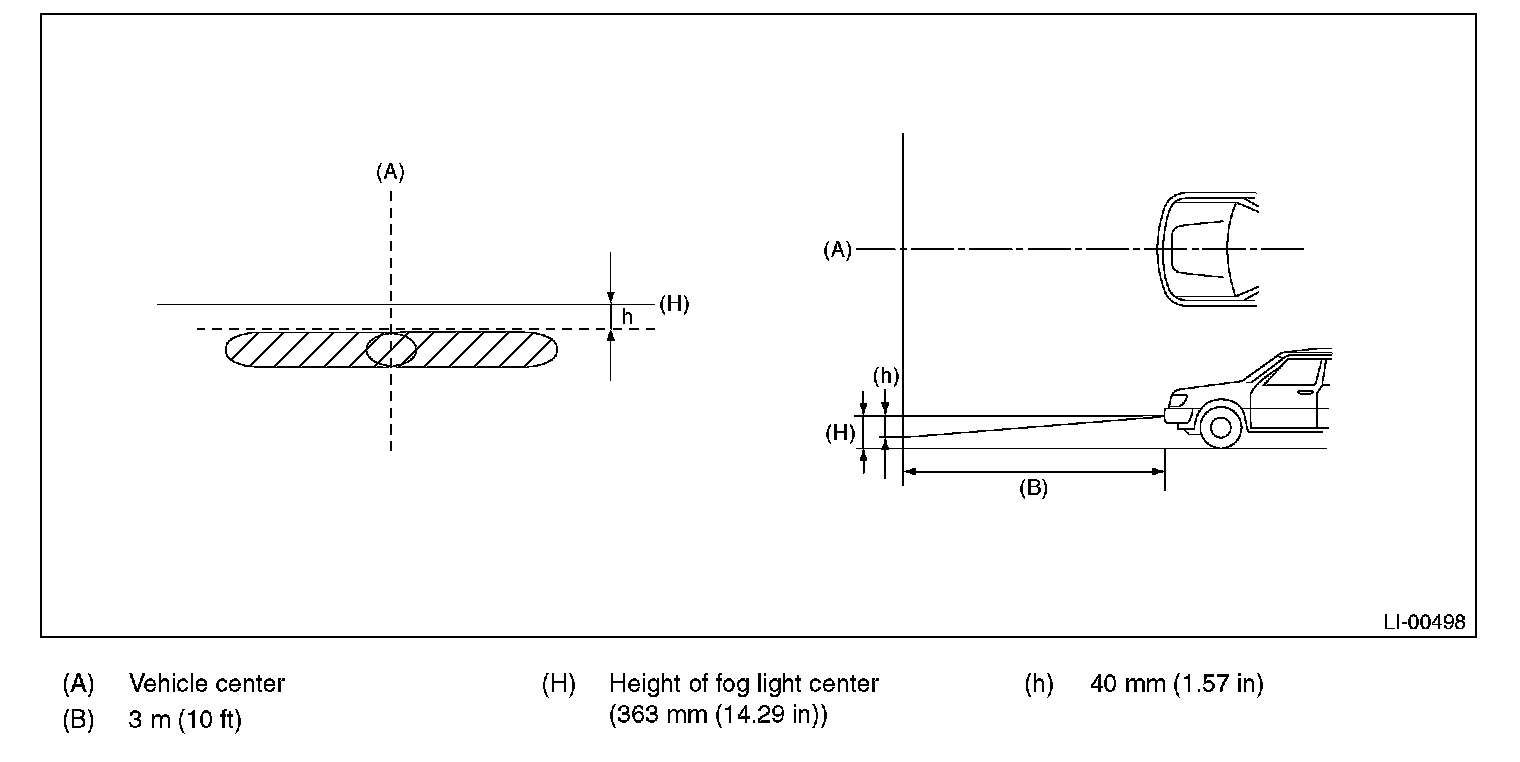

1. FOG LIGHT AIMING
NOTE: Before checking the fog light aiming, be sure of the following:
- There is no scratch, damage or other deformation on the area around the fog light.
- Vehicle is parked on level ground.
- The inflation pressure of tires is correct.
- Fuel tank is full.
1. Shake the vehicle up and down several times to make the suspension fit in.
2. Seat a person in the driver s seat.

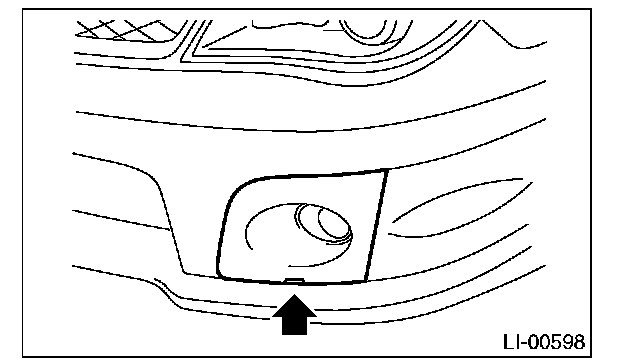

3. Insert the flat-tip screwdriver or the like into lower side of front fog light cover, and remove the front fog light cover.
NOTE: Be careful not to scratch the front bumper.

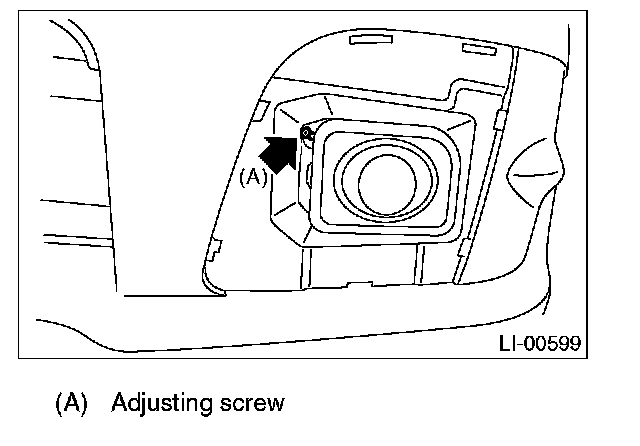

4. Insert the Phillips screwdriver to adjusting screw, and adjust the fog light pattern.
