Compulsory Valve Operation Check Mode
Compulsory Valve Operation Check ModeOPERATION
1. Prepare the Subaru Select Monitor kit.
2. Connect the diagnosis cable to the Subaru Select Monitor.

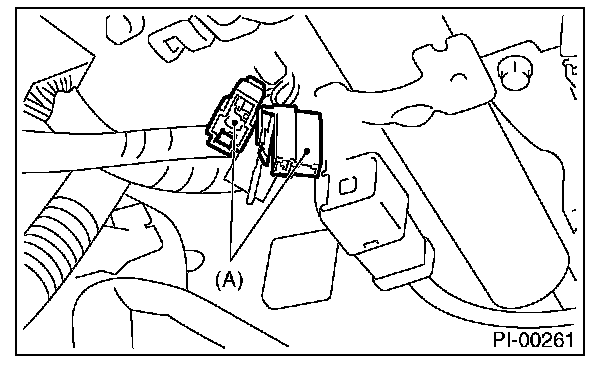

3. Connect the test mode connector (A) located in the lower portion of the instrument panel (on the driver's side).
4. Connect the Subaru Select Monitor to the data link connector.

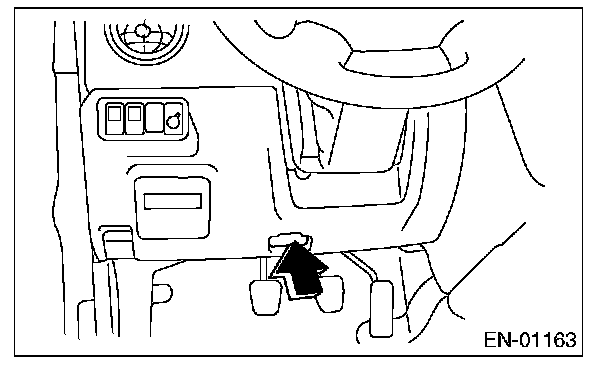

1. Data link connector is located in the lower portion of instrument panel (on the driver's side).
2. Connect the diagnosis cable to the data link connector.
CAUTION: Do not connect anything other than the Subaru Select Monitor and general scan tool.
5. Turn the ignition switch to ON (engine OFF) and run the Subaru Select Monitor.
6. On the "Main Menu" display screen, select {Each System Check}.
7. On the "System Selection Menu" display screen, select {Engine Control System}.
8. Select the [OK] after the information of engine type has been displayed.
9. On the "Engine Diagnosis" display screen, select the {System Operation Check Mode}.
10. On the "System Operation Check Mode" display screen, select the {Actuator ON/OFF Operation}.
11. Select the desired compulsory actuator on the "Actuator ON/OFF Operation" display screen.
12. Select the [NO] key to complete the compulsory valve operation check mode. The display will then return to the "Actuator ON/OFF Operation" screen.

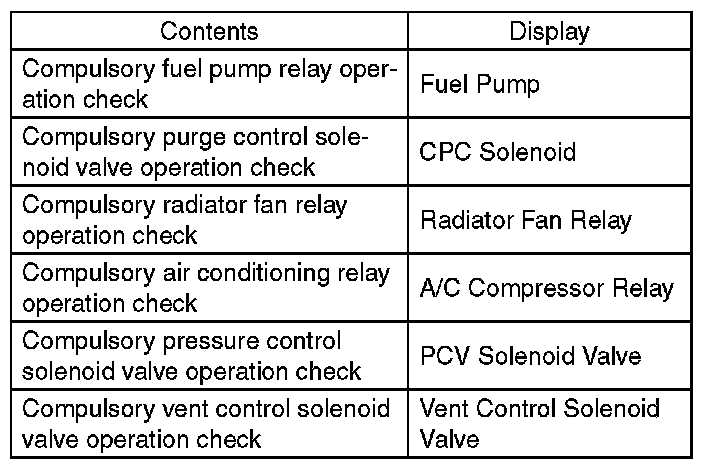

- A list of the support data is shown in the table.
NOTE:
- The following parts will be displayed but not functional.
- For detailed operation procedure, refer to the "SUBARU SELECT MONITOR OPERATION MANUAL".
