Check Power Supply and Ground Line of Engine Control Module (ECM)

CHECK POWER SUPPLY AND GROUND LINE OF ENGINE CONTROL MODULE (ECM)

CAUTION: After repairing or replacing the defective parts, perform the Clear Memory Mode Clearing Diagnostic Trouble Codes and Inspection Mode. DTC List - P Codes

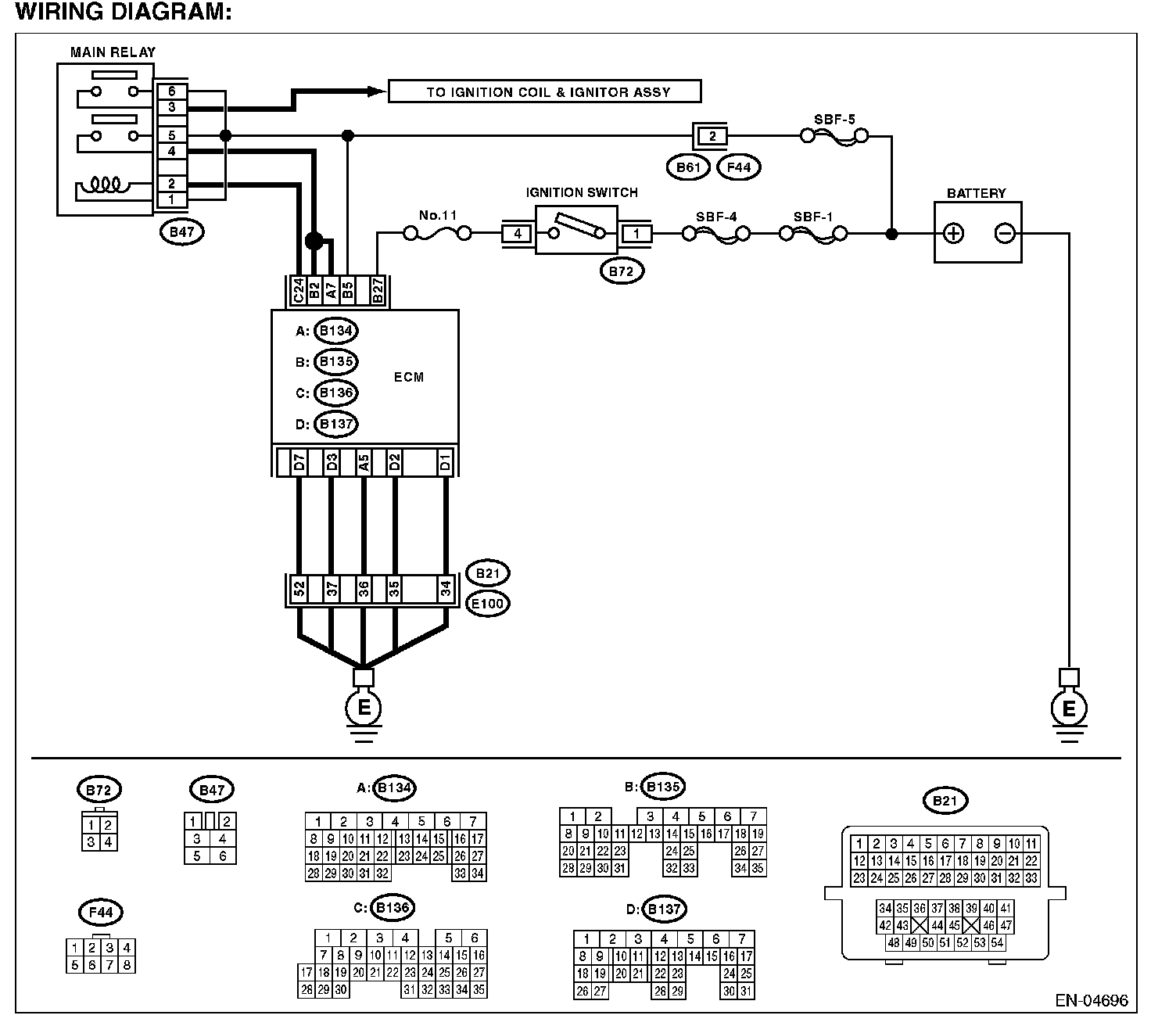

Wiring Diagram:




WIRING DIAGRAM

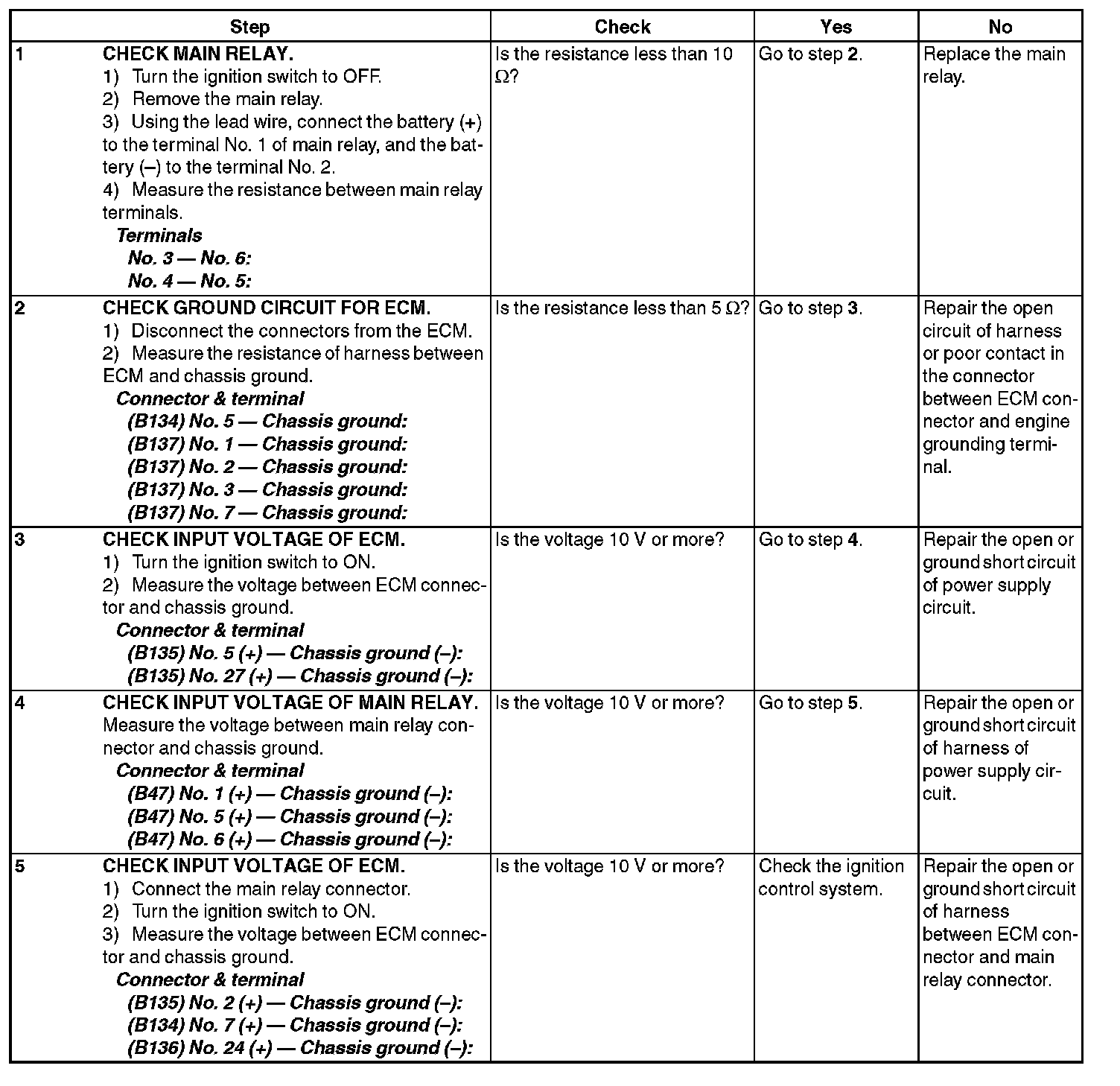

Step 1-5:
