E/G(NA)-04

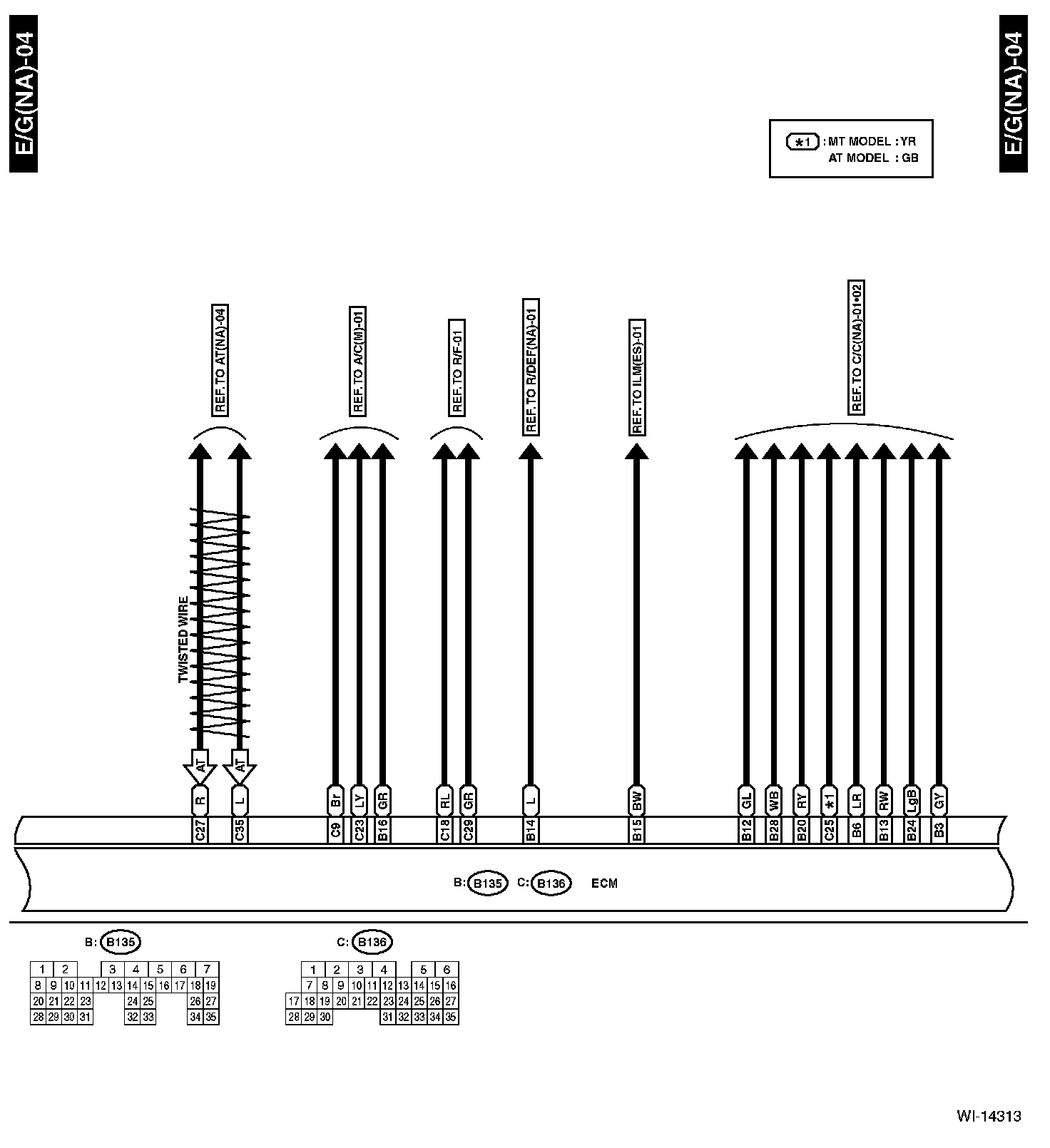

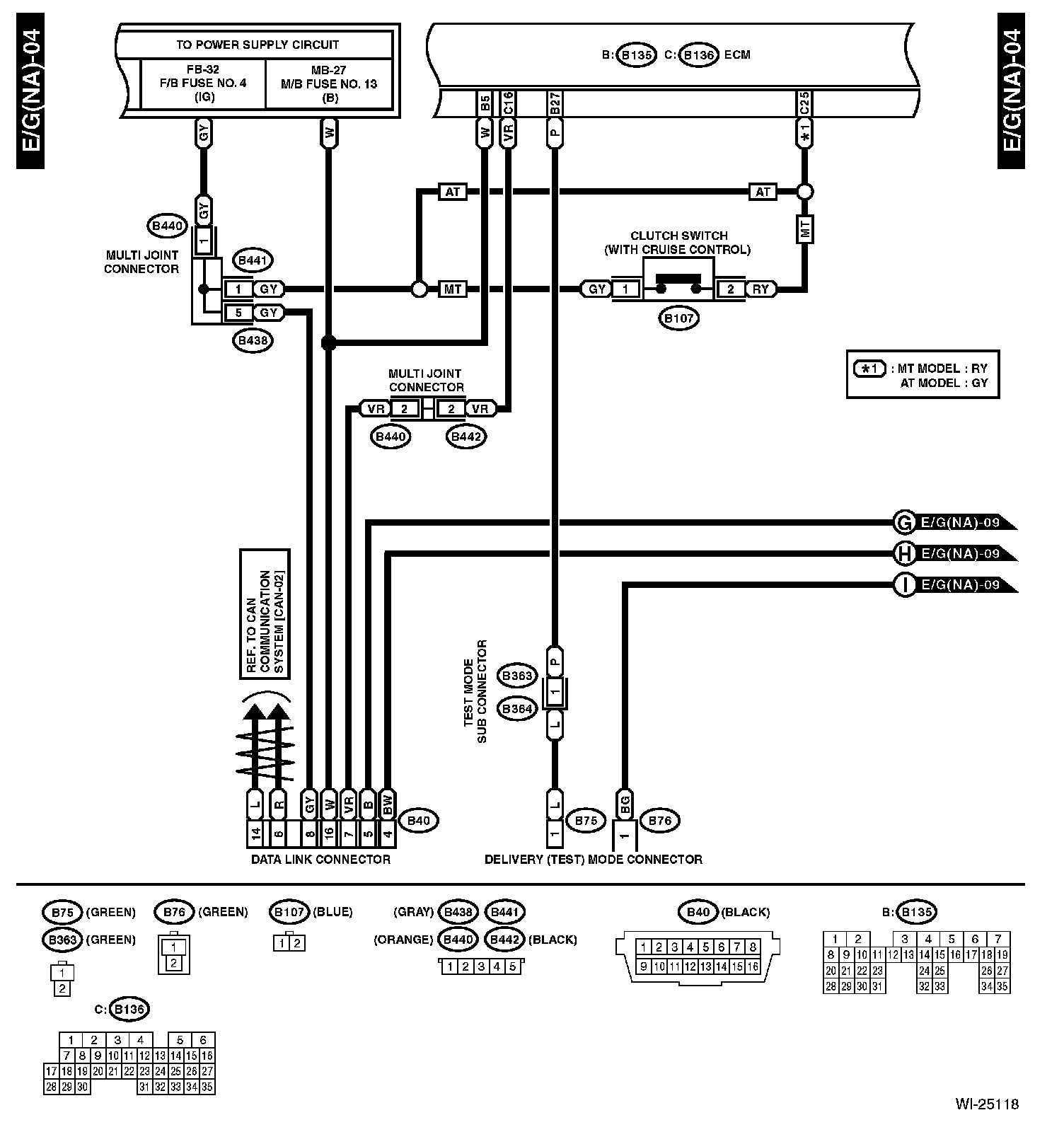

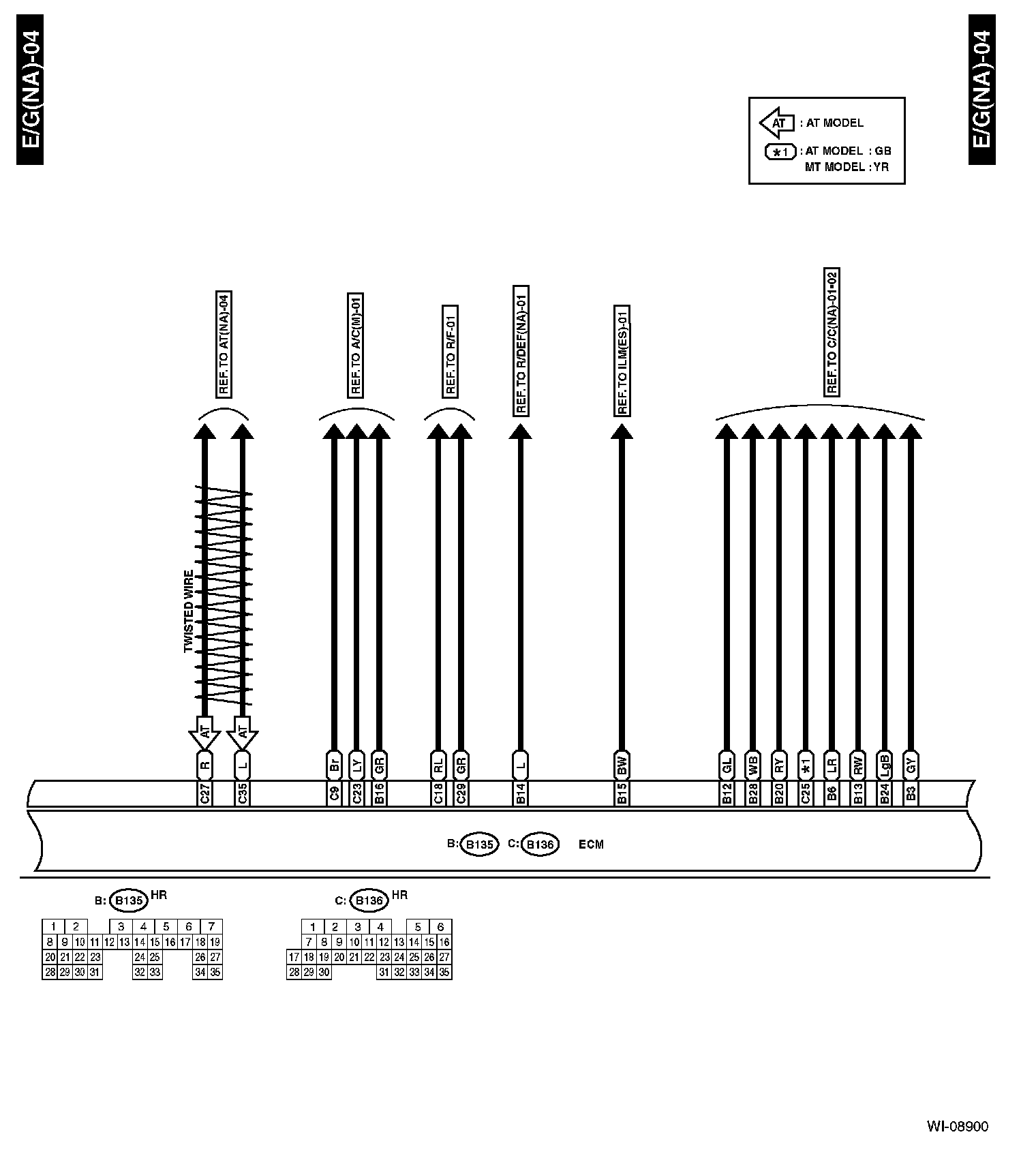

E/G(NA)-04:






Next Diagram E/G(NA)-05

Previous Diagram E/G(NA)-03

Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name

Connector and Ground Locations: The locations of the Connectors or Grounds shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations
