Clutch, M/T
>>
Pressure Plate
Pressure Plate
Pressure Plate
^

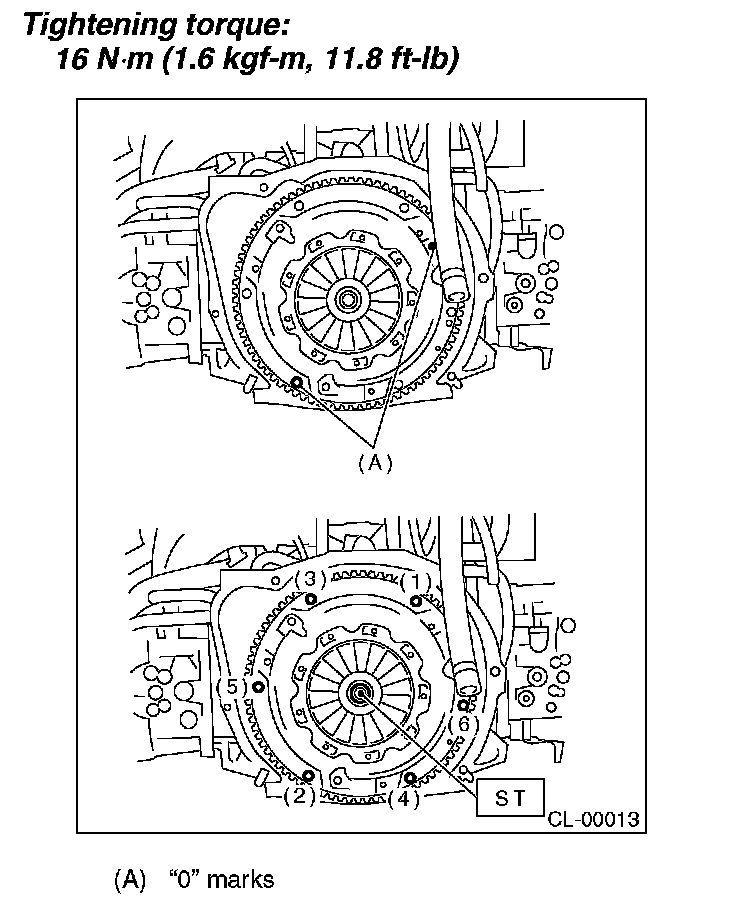

Tighten the clutch cover installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross order.
