Camshaft Bearing

Cam Bearing Torque

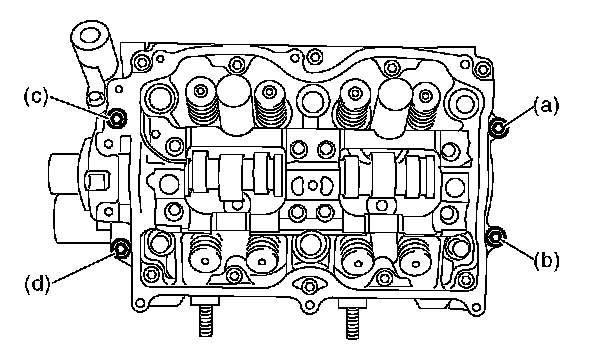

Temporarily tighten the bolts (a) through (d) in alphabetical sequence.





Install the valve rocker assembly.

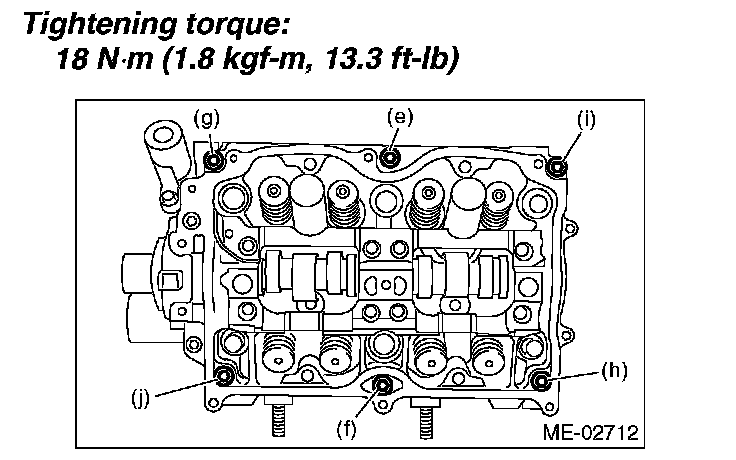

Tighten the TORX bolts (e) through (j) in alphabetical sequence using ST.
ST 499497000 TORX PLUS
Tightening torque: 18 Nm (1.8 kgf-m, 13.3 ft. lbs.)

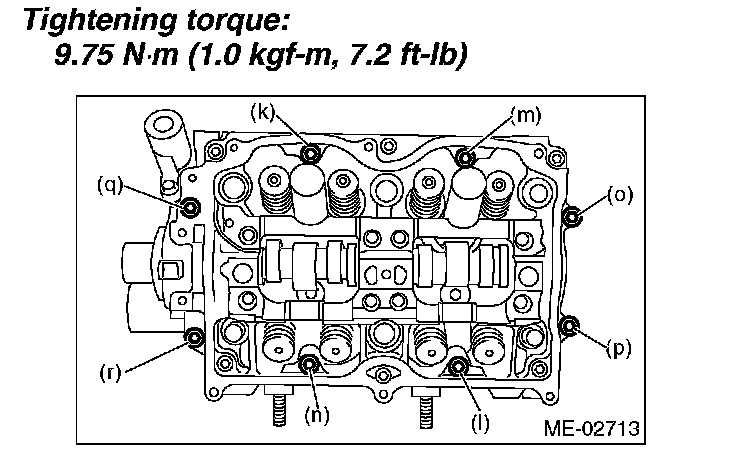

Tighten the bolts (k) through (r) in alphabetical sequence.
Tightening torque: 9.75 Nm (1.0 kgf-m, 7.2 ft. lbs.)

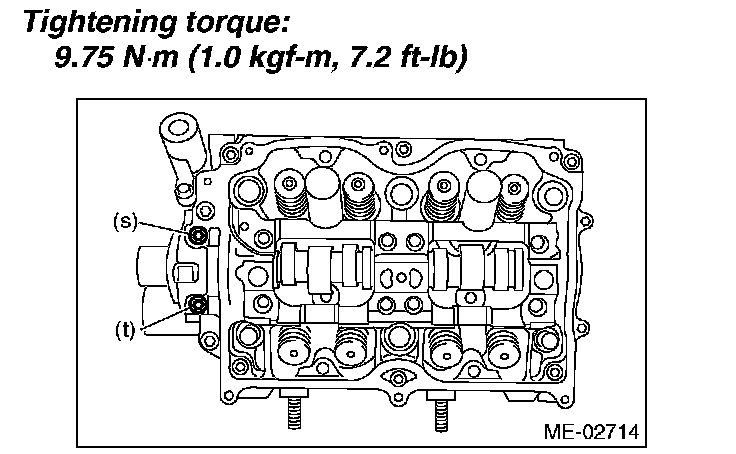

Tighten the bolts (s) and (t) in alphabetical sequence.
Tightening torque: 9.75 Nm (1.0 kgf-m, 7.2 ft. lbs.)
