Control Module: Service and Repair

Transmission Control Module (TCM)

REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the lower cover and then disconnect the connector.

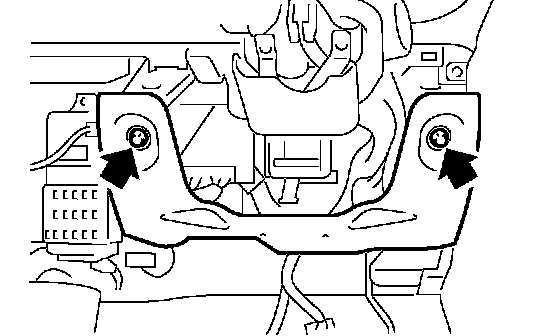

3) Remove the knee bolster.





4) Disconnect the connectors from TCM.

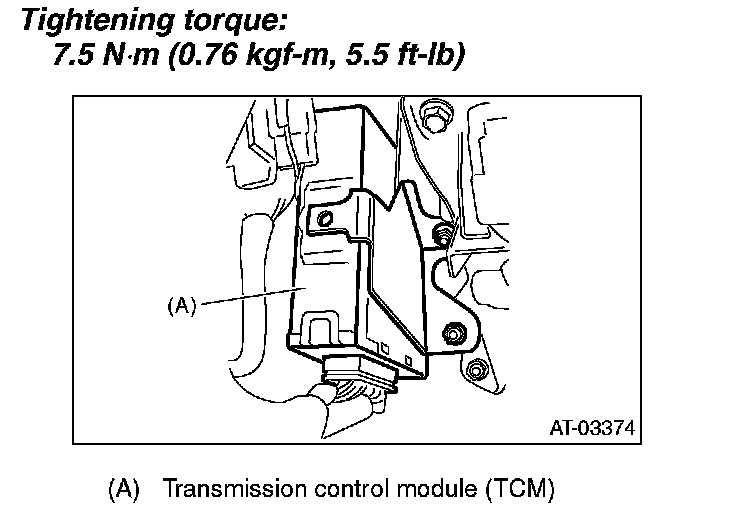

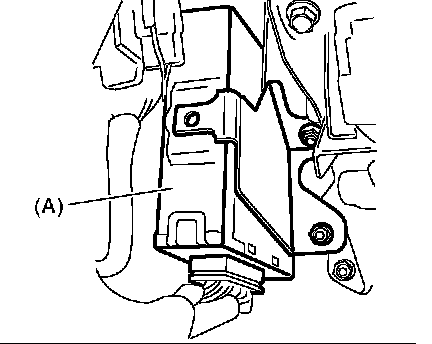

5) Remove the TCM.

INSTALLATION
1) Install the TCM.





2) Connect the connectors to TCM.
3) Install in the reverse order of removal.
4) If replacing the TCM, execute the advance operation of learning control promotion.
