High Clutch Duty Solenoid

HIGH CLUTCH DUTY SOLENOID

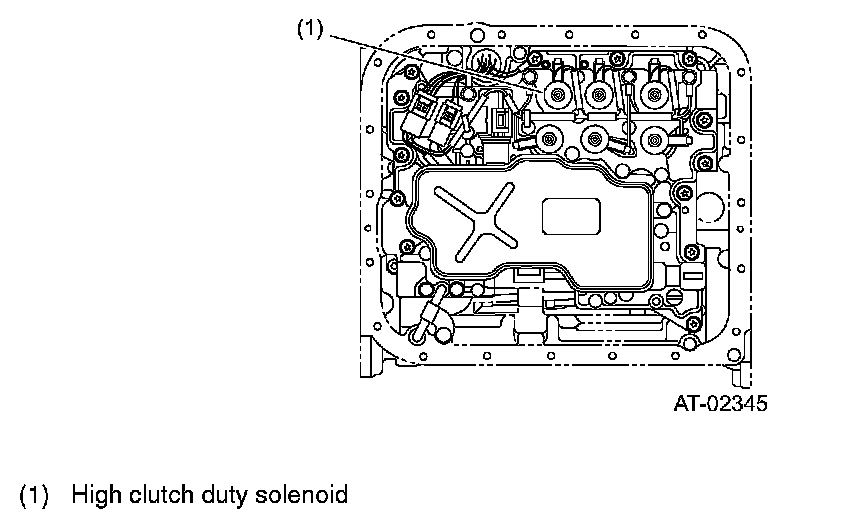

This solenoid is mounted on the transmission control valve. This adjusts the pressure applied to the high clutch in response to the duty instructions from the TCM. The engaging force of the high clutch during shifting is properly controlled and shift shocks are reduced.
