Antitheft Relay: Testing and Inspection

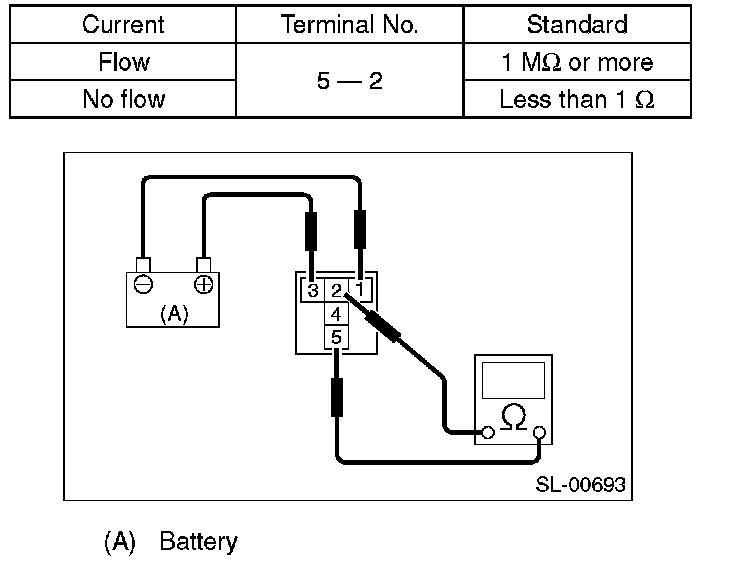

Interrupt RelayINSPECTIONMeasure the interrupt relay resistance between terminals (indicated in the table below) when connecting terminal No. 3 to battery positive terminal and terminal No. 1 to battery ground terminal.
If NG, replace the interrupt relay.
