Console: Service and Repair

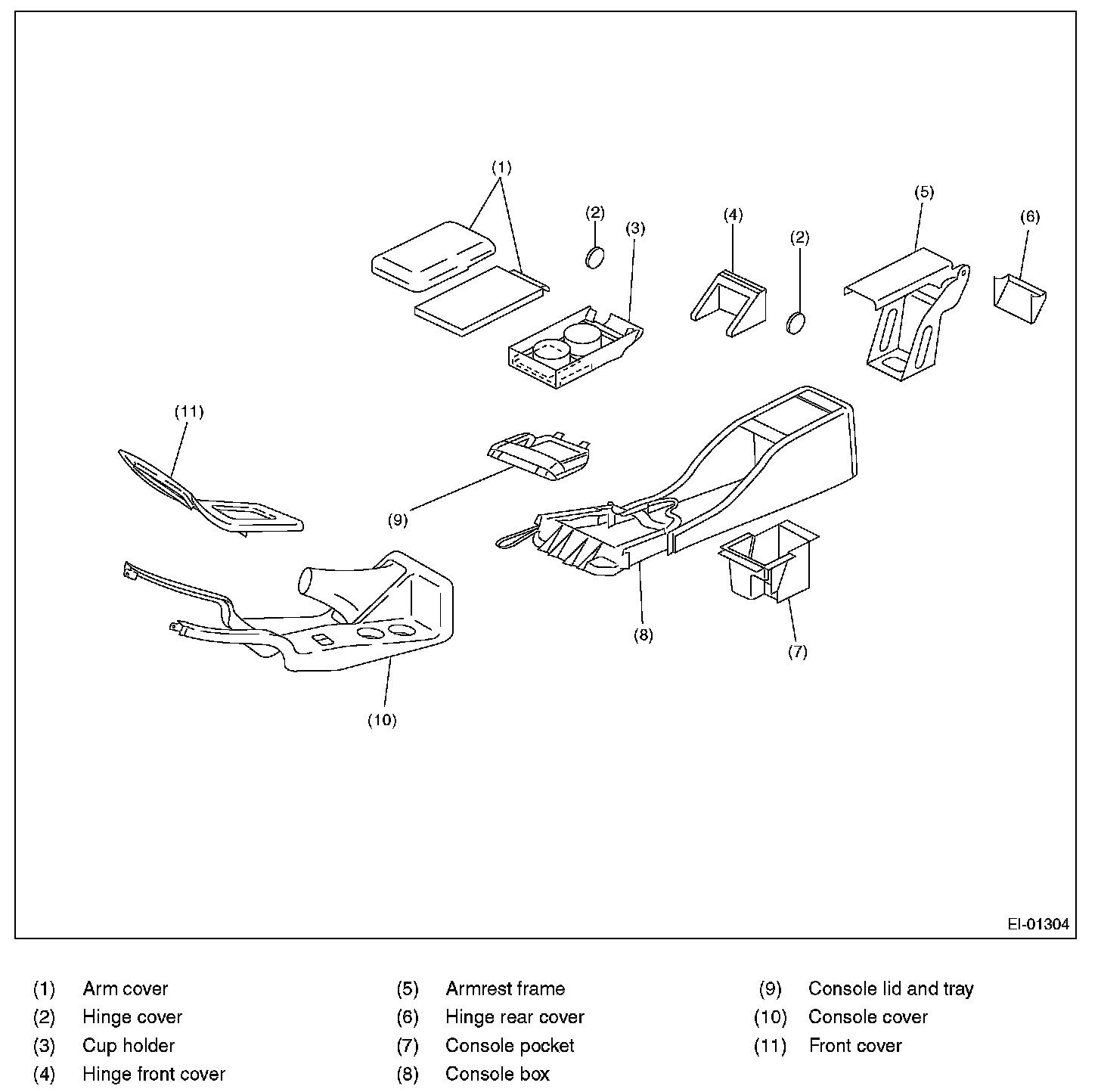

CONSOLE BOXConsole Box:
REMOVAL 1.
Disconnect the ground cable from the battery.
2.

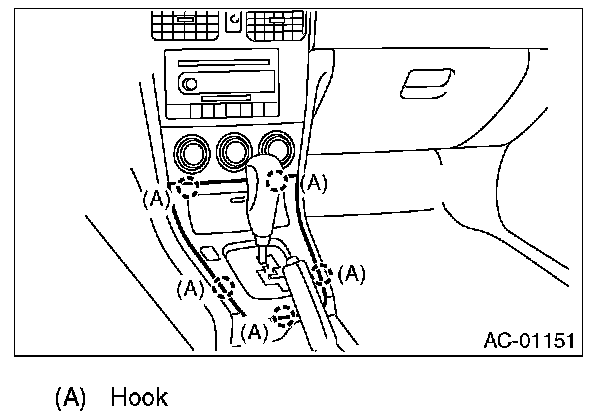

Remove the
console front cover.
3.

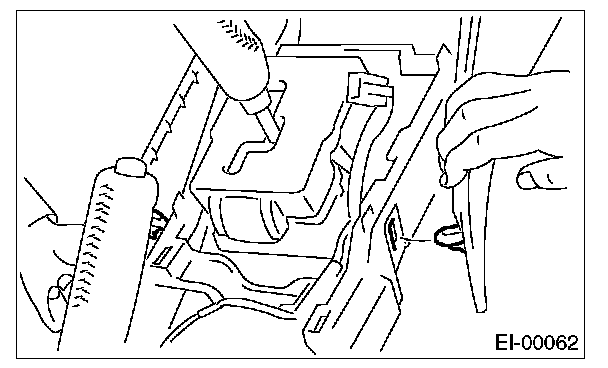

Remove the shift knob. (MT model)
4.

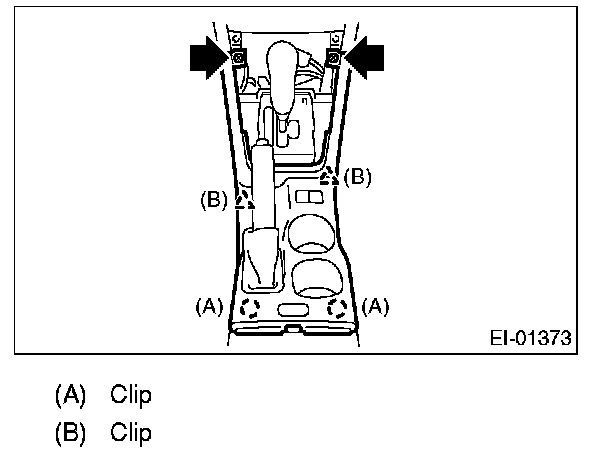

Loosen the screws to remove
console cover.
5.

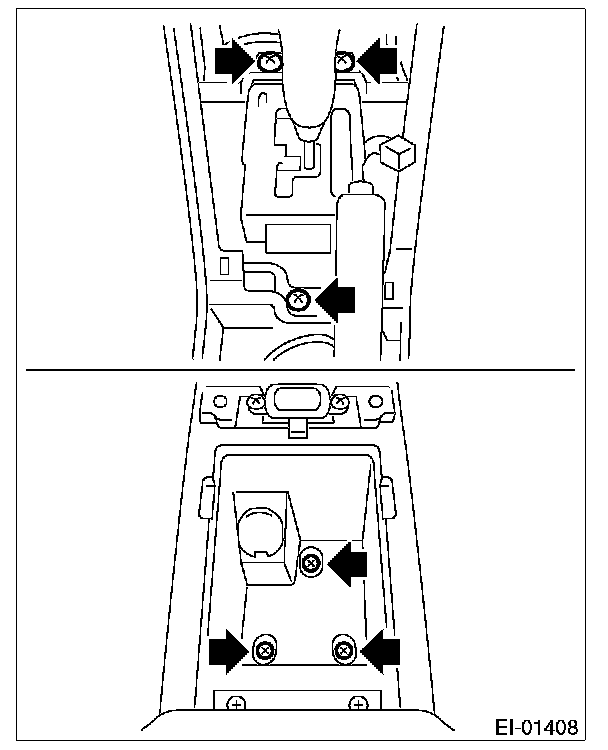

Loosen the screws.
6.
Remove the
console side panel hooks to remove the console box.
INSTALLATIONInstall in the reverse order of removal.
