Outer Mirror

OUTER MIRROR

Mirror:






REPLACEMENT

1. Face the mirror upward.

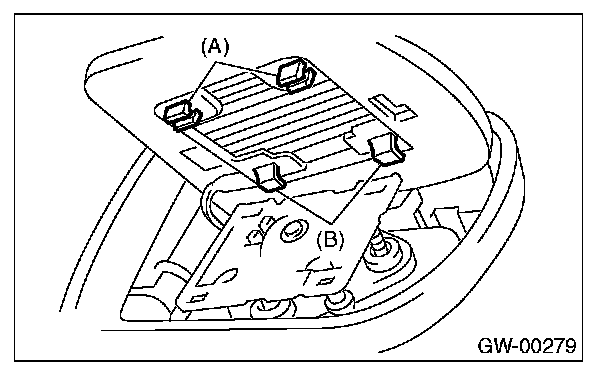

2. Use a flat tip screwdriver or similar tools to remove clip (A).
3. Lift the mirror lower part to remove hooks (B).






4. Disconnect the mirror heater connector from the end part of the mirror. (Model with mirror heater)






5. Catch the hooks (B) and install clips (A).






CAUTION:
- When removing the mirror, be careful not to damage the back surface of mirror with a flat tip screwdriver or similar tools.
- When installing the mirror, insert the hook and clip securely.
