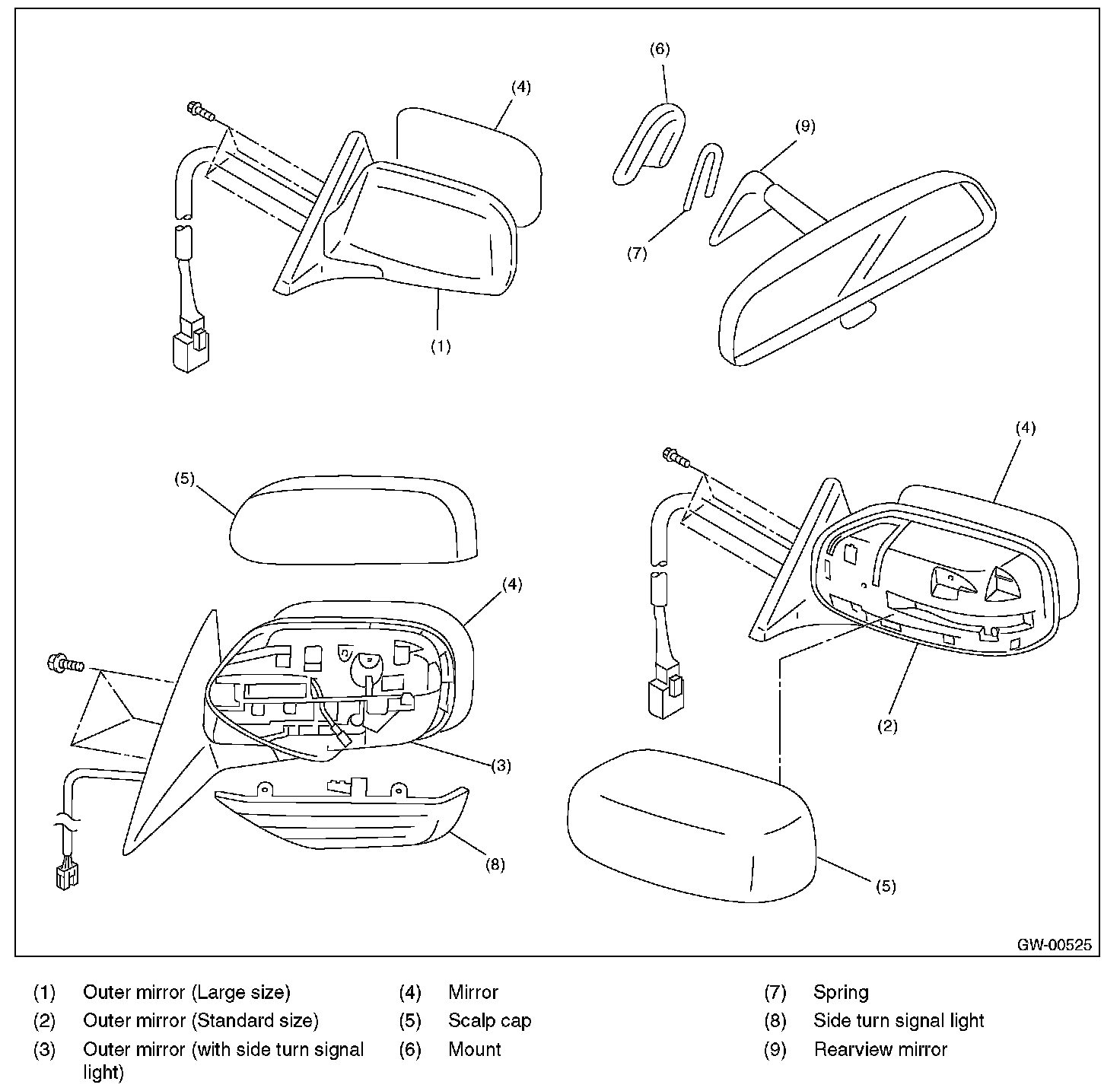

Outer Mirror Assembly

OUTER MIRROR ASSEMBLY

Mirror:

REMOVAL

1. Remove the door trim.

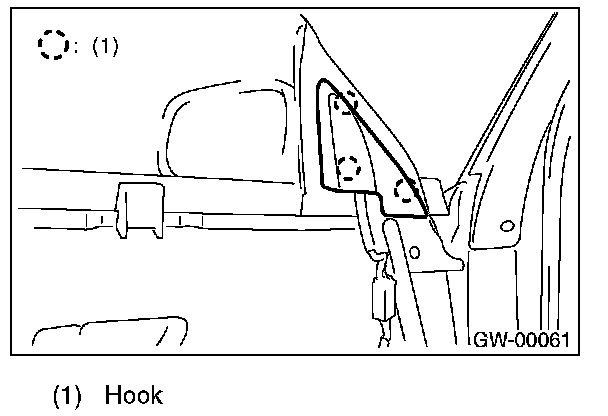

2. Remove the mirror gusset cover.

3. Disconnect the outer mirror connector.

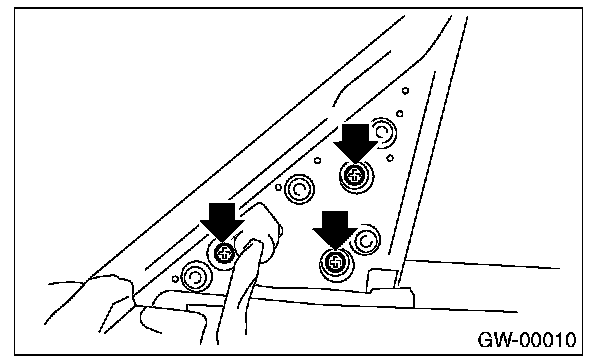

4. Remove the grommet, and loosen the screws to remove the outer mirror assembly.

INSTALLATION

Install in the reverse order of removal.
