Scalp Cap

SCALP CAP

Mirror:

REPLACEMENT

1. OUTER MIRROR WITH SIDE TURN SIGNAL LIGHT
1. Remove the mirror.

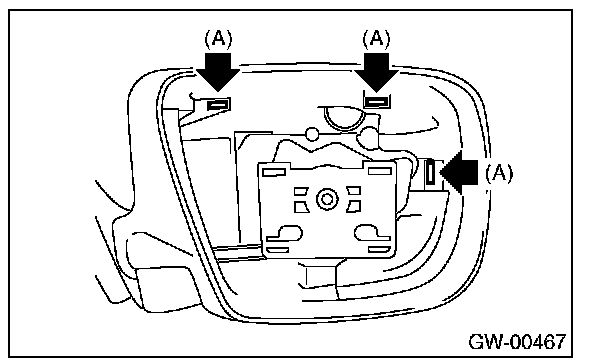

2. Press-in the upper side clips (A) from inside of outer mirror.

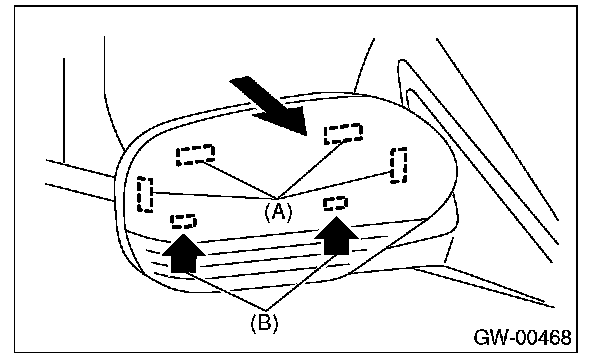

3. Pull the scalp cap frontward of outer mirror, remove the upper side clips (A) and lower side hooks (B), and then remove the scalp cap.

4. Insert the lower hooks (B) of scalp cap to the outer mirror and push the upper clips (A) in.

5. Install the scalp cap securely.

CAUTION: Do not remove the scalp cap forcibly. The lower hooks may be damaged.

2. STANDARD SIZE OUTER MIRROR
1. Put the mirror side down.

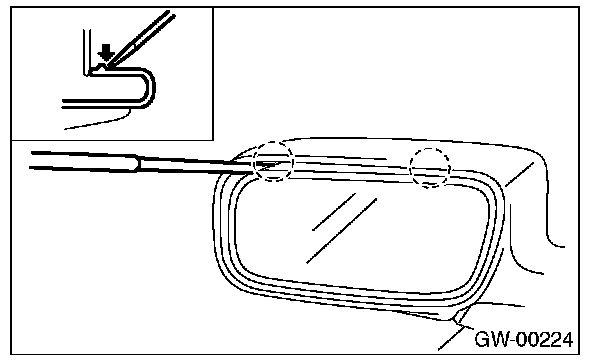

2. Insert a thin screw driver, push the clip part of scalp cap, and then remove the scalp cap.

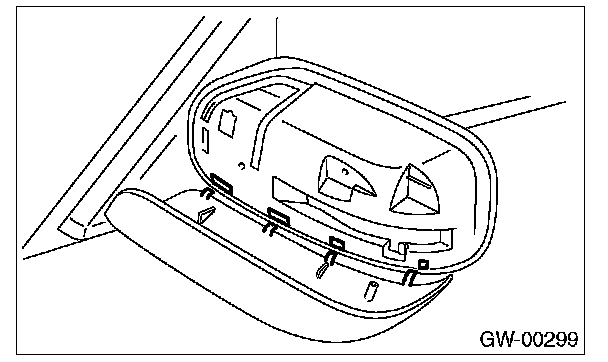

3. Insert the claw at the lower side of scalp cap to the door mirror.

4. Install the scalp cap securely.
