Traction Control Switch: Service and Repair
VDC OFF Switch REMOVAL 1)

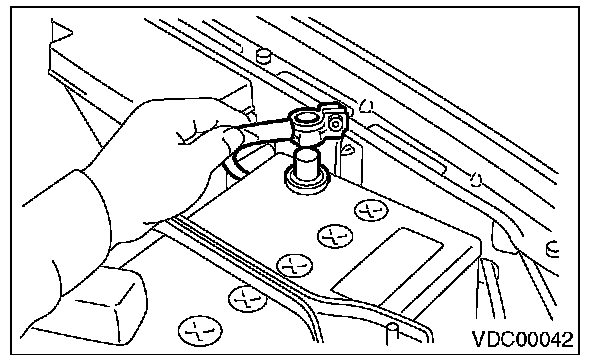

Disconnect the ground cable from the battery.
2)
Remove the instrument panel lower cover.
3)
Disconnect the VDC OFF switch connector, push outside, and press the VDC OFF switch.
INSTALLATION Install in the reverse order of removal.

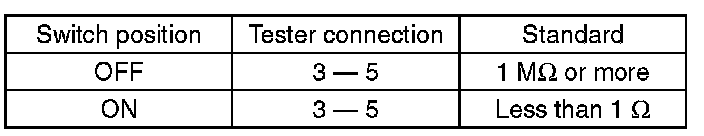

INSPECTION Inspect the resistance between VDC OFF switch terminals.
If NG, replace the VDC OFF switch.
