Ambient Sensor (Auto A/C Model)
INSPECTIONAMBIENT SENSORTROUBLE SYMPTOM -
Fan speed is not switched when the fan speed control dial is in AUTO position.
-
Failure related to the ambient sensor is indicated in self-diagnosis.
WIRING DIAGRAMWiring Diagram:

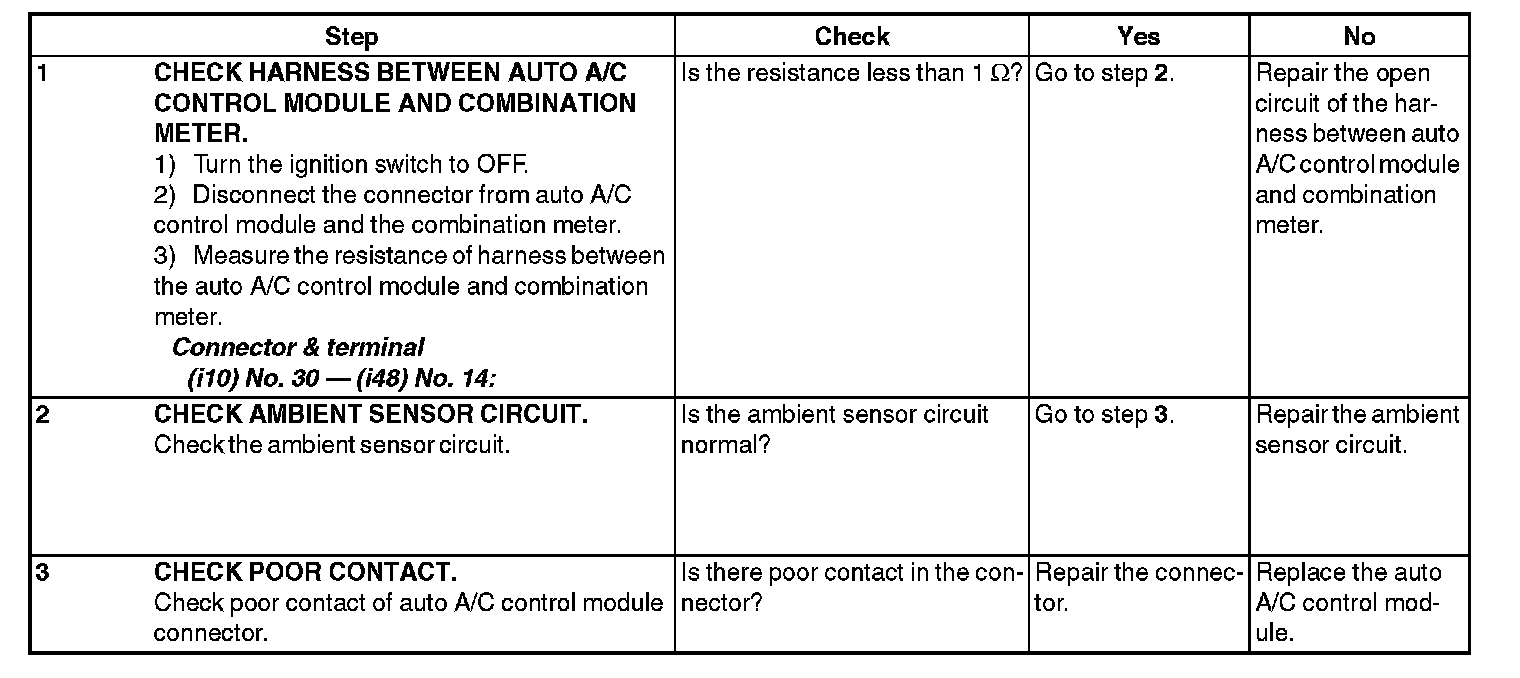

Step 1-3:
