In-Vehicle Sensor (Auto A/C Model)
INSPECTIONIN-VEHICLE SENSORTROUBLE SYMPTOM: -
Blower fan speed, outlet port and inlet port do not change after turning the AUTO switch ON
-
Failure related to the in-vehicle sensor is indicated in self-diagnosis.

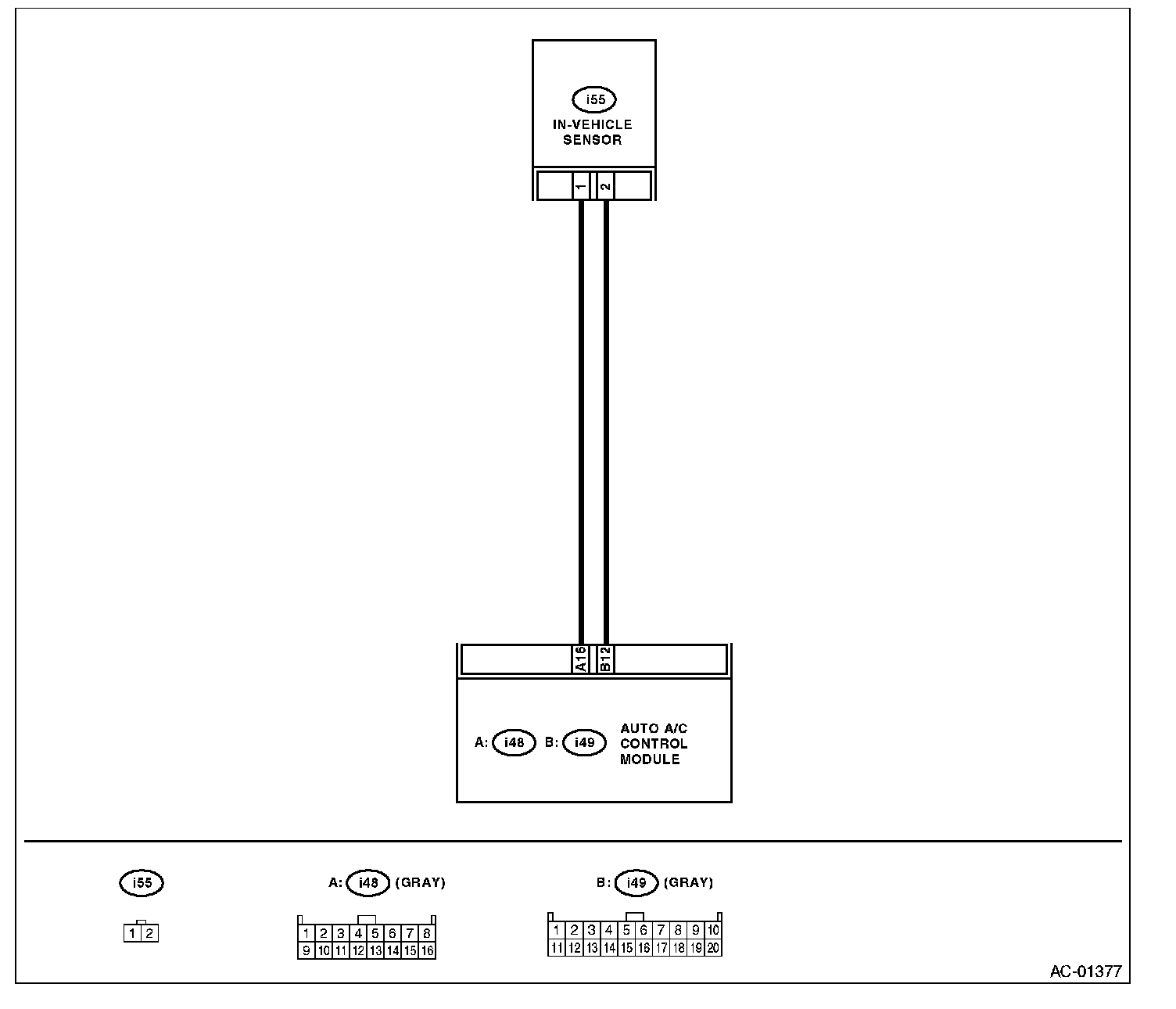

Wiring Diagram:

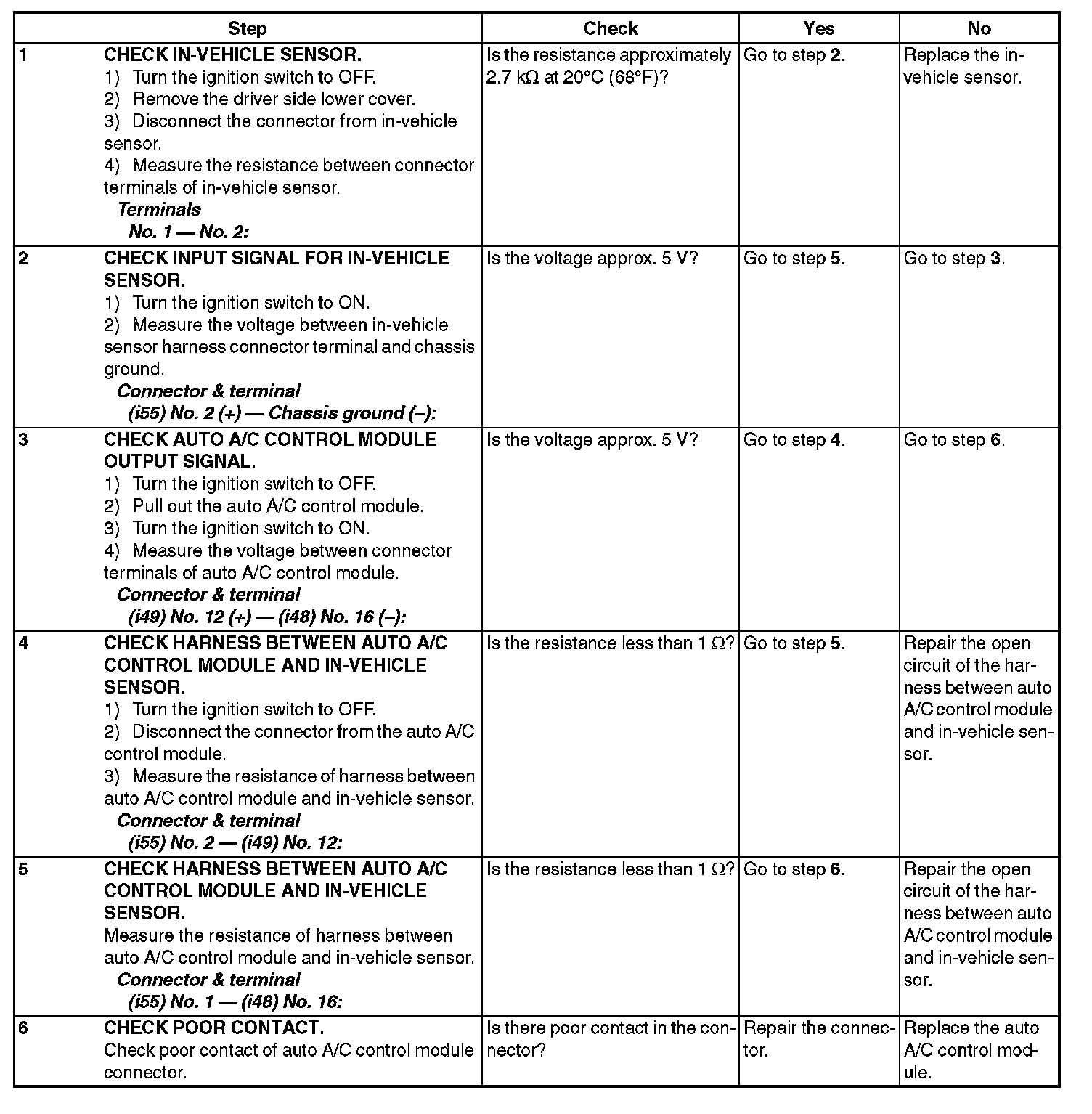

Step 1-6:
