Blower Motor: Service and Repair

Blower Motor Unit Assembly

REMOVAL
1. Disconnect the ground cable from the battery.
2. Remove the glove box.
3. Loosen the nut to remove support beam stay.

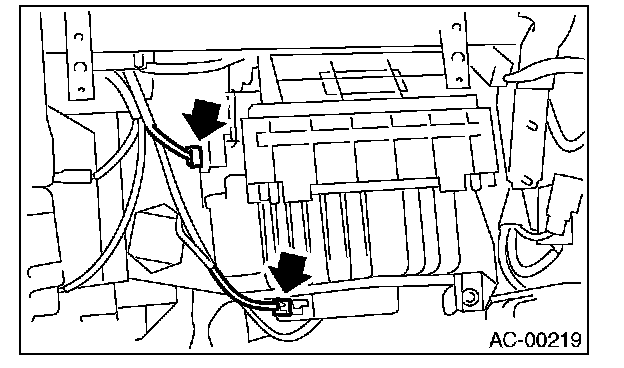

4. Disconnect the connectors of the blower motor and intake actuator register.






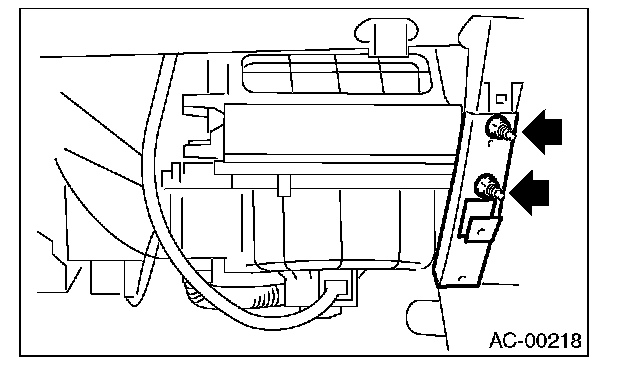

5. Loosen the bolt and nut to remove blower motor unit assembly.






INSTALLATION
Install in the reverse order of removal.

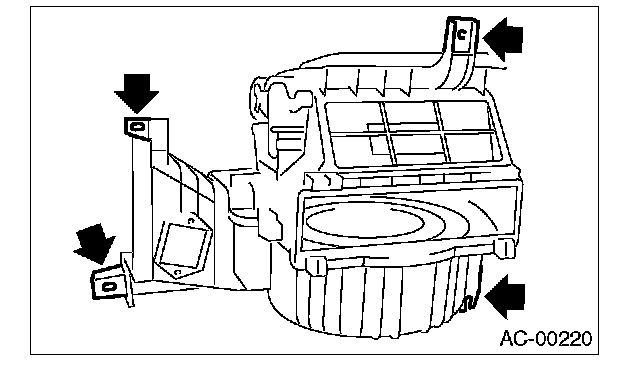

HEATER COOLING UNIT

- Auto A/C model

Tightening torque: N.m (kgf.m, ft.lb)
T: 7.5 (0.76, 5.5)

- Manual A/C model

Tightening torque: N.m (kgf.m, ft.lb)
T: 7.5 (0.76, 5.5)
