Blower Motor: Testing and Inspection
Blower Motor Unit AssemblyINSPECTIONInspection of auto A/C brushless motor operation.

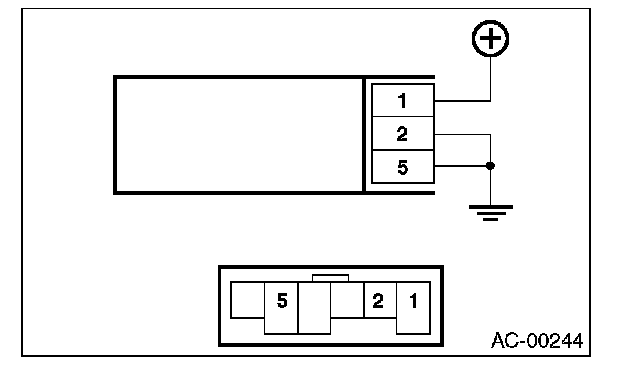

Connect the motor connector terminal 1 from the battery to the positive (+) lead and terminals 2 and 5 at the same time to the negative (-) lead. Make sure the motor runs smoothly.
