Combination Switch: Service and Repair

Combination Switch (Light)

REMOVAL
1. Disconnect the ground cable from the battery.
2. Remove the instrument panel lower cover.

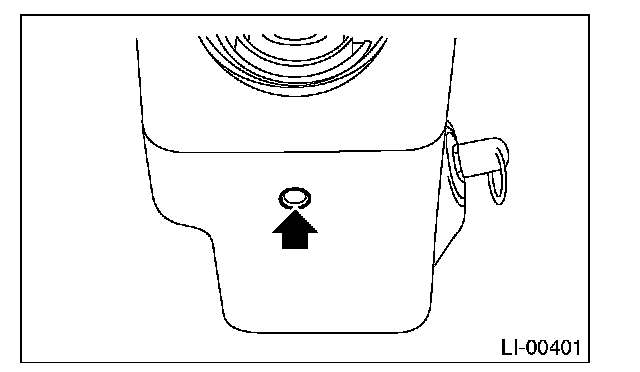

3. Remove the screws which secure upper column cover to lower column cover.

4. Disconnect the connector from combination switch.

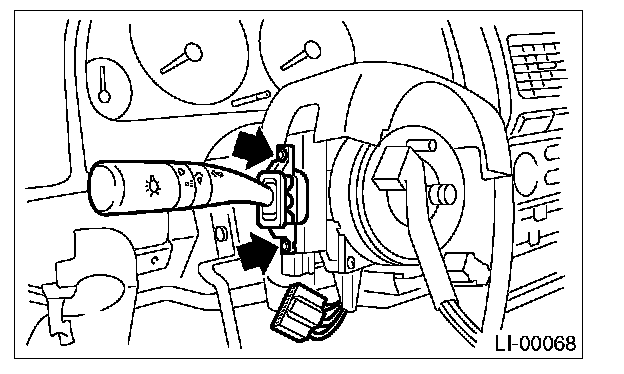

5. Remove the screws which secure the switch, then remove the switch.

INSTALLATION
Install in the reverse order of removal.
