Turn Signals: Service and Repair

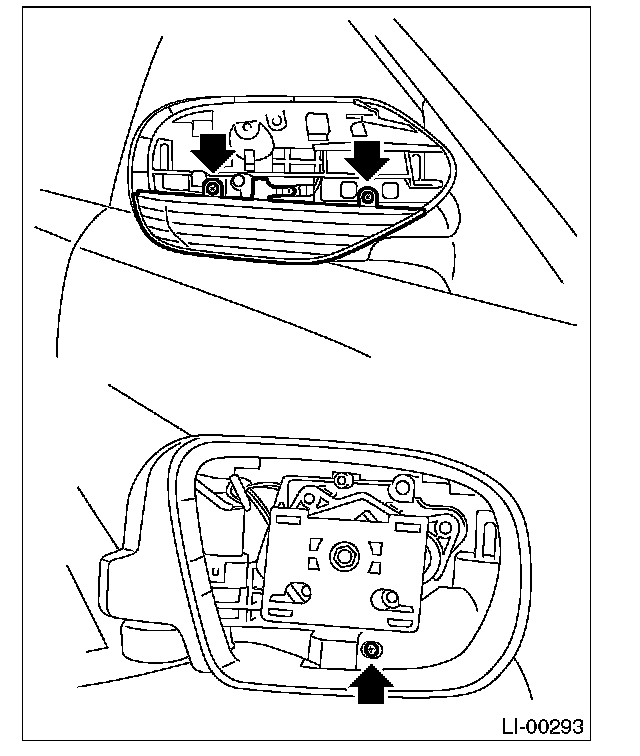

Side Turn Signal Light AssemblyREMOVAL 1.
Disconnect the ground cable from the battery.
2.
Remove the scalp cap.
3.
Disconnect the harness connector, remove the 3 mounting screws and then remove the side turn signal light assembly.
INSTALLATIONInstall in the reverse order of removal.
