Removal and Replacement

Compressor Oil

REPLACEMENT

NOTE:

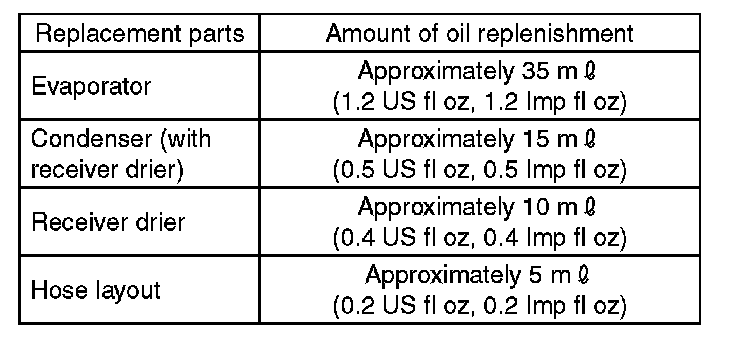

- After replacing the component, add an appropriate amount of compressor oil (same as the amount of remaining oil in removed component).
- When replacing the compressor, the new compressor will already have the specified amount of oil in it. Install the new compressor after removing the oil so that the amount of oil is same as the amount of remaining oil in the removed compressor.
