Front Sub Sensor
Front Sub SensorREMOVAL
1. Turn the ignition switch to OFF.
2. Disconnect the ground cable from battery and wait for at least 20 seconds before starting work.
3. Remove the front grille and the front grille side.

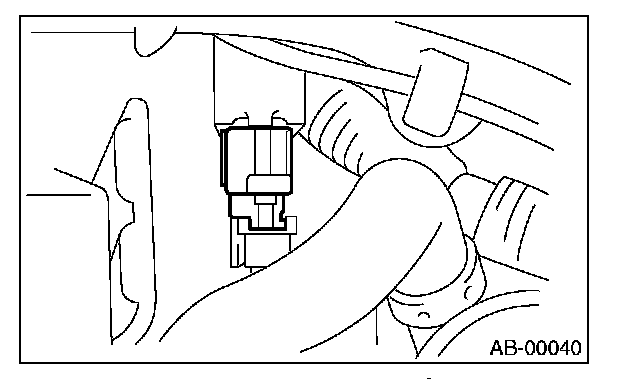

4. Disconnect the connector from front sub sensor.
5. Loosen the nut and remove the front sub sensor.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
- Do not reuse the bolts and nuts.
- Always use new bolts and nuts.
Tightening torque:
SRS AIRBAG
Tightening torque: N.m (kgf.m, ft.lb)
T1: 7.5 (0.8, 5.5)
T2: 10 (1.0, 7.2)
T3: 20 (2.0, 14.5)
T4: 25 (2.5, 18.1)
