Removal and Replacement

Battery

REMOVAL
1. Disconnect the positive (+) terminal after disconnecting the negative (-) terminal of battery.

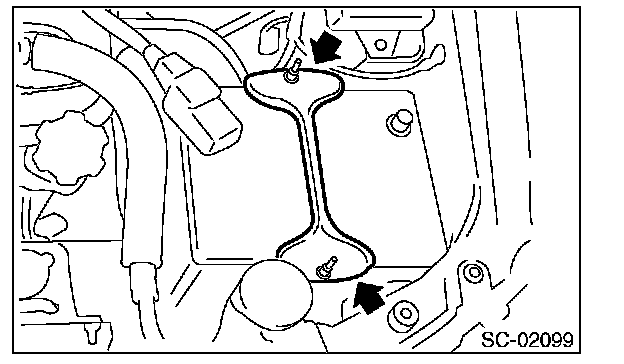

2. Remove the flange nut from battery rod and remove battery holder.






3. Remove the battery.

INSTALLATION
Install in the reverse order of removal.

Tightening torque: 3.4 N.m (0.35 kgf.m, 2.5 ft.lb)

NOTE:
- Clean the battery cable terminals and apply grease to retard the formation of corrosion.
- Connect the positive (+) terminal, and then connect the negative (-) terminal of battery.
- Initial diagnosis of the electronic throttle control is performed after the battery is installed. Therefore, start the engine after 10 seconds or more have passed since turning the ignition switch to ON.
