Extension Assembly
EXTENSION ASSEMBLY Tapered roller bearing preload (amount of standard protrusion): 0.15 - 0.25 mm (0.006 - 0.010 in)
NOTE: Make sure to set between the preload range.

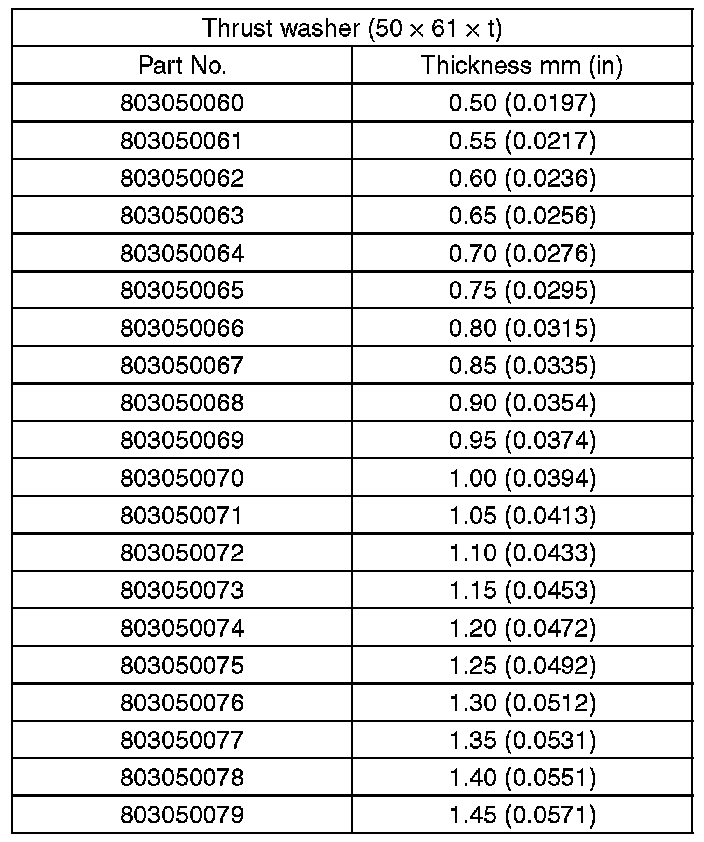

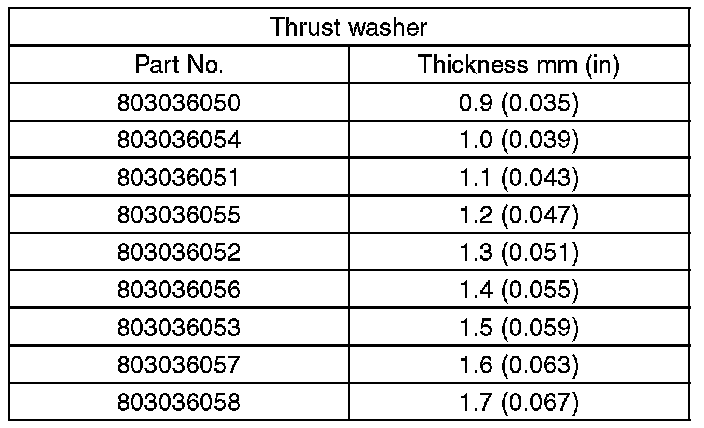

Thrust washer to center differential side clearance: 0.15 - 0.35 mm (0.0059 - 0.0138 in)
