Rear Door Window Regulator: Service and Repair

REAR REGULATOR AND MOTOR ASSEMBLY

REMOVAL

1. Remove the rear door glass.
2. Remove the front sash.
3. Disconnect the motor connector.

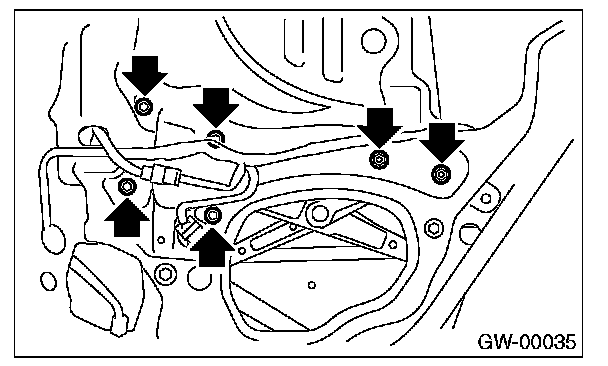

4. Loosen four bolts and two nuts to remove regulator assembly.

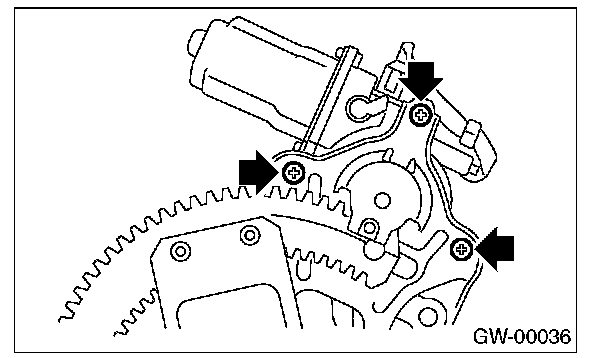

5. Loosen screws to remove motor assembly.

INSTALLATION

1. Install in the reverse order of removal.
2. Adjust the rear door glass.

Tightening torque: Refer to "COMPONENT" of "General Description".
