Wiper Relay: Service and Repair

Wiper Control Relay

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the quarter lower trim RH.

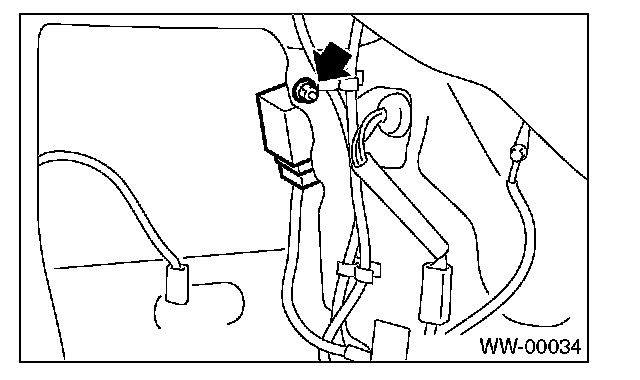

3. Loosen the nut to remove the control unit.

INSTALLATION
Install in the reverse order of removal.
