Air Register: Service and Repair

Air Vent Grille

REMOVAL
1. CENTER GRILLE

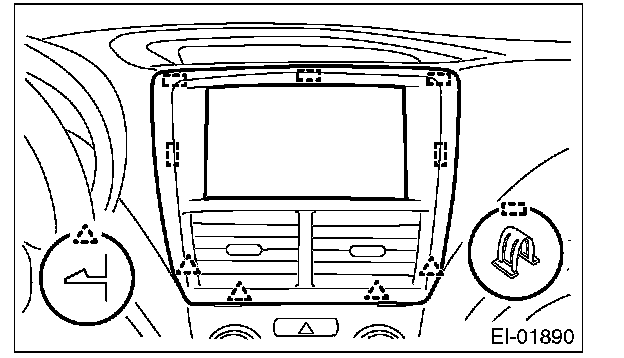

1. Remove hooks (A), and remove the center panel.






2. Remove the claws, and remove the air vent center grille from the center panel.

2. SIDE GRILLE
1. Remove the ornament panel.

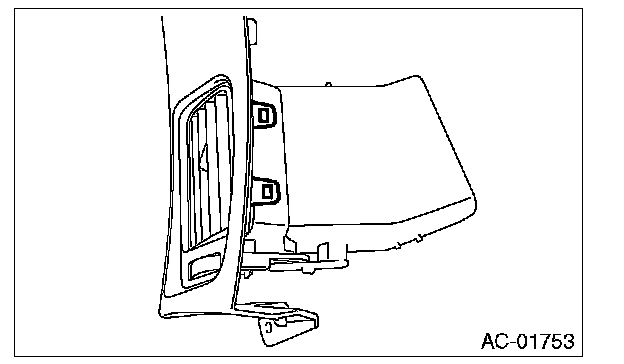

2. Remove the claws, and remove the air vent side grille.






INSTALLATION
Install in the reverse order of removal.
