Diagnostic Chart For Self-Diagnosis

Diagnostic Chart for Self-Diagnosis

OPERATION

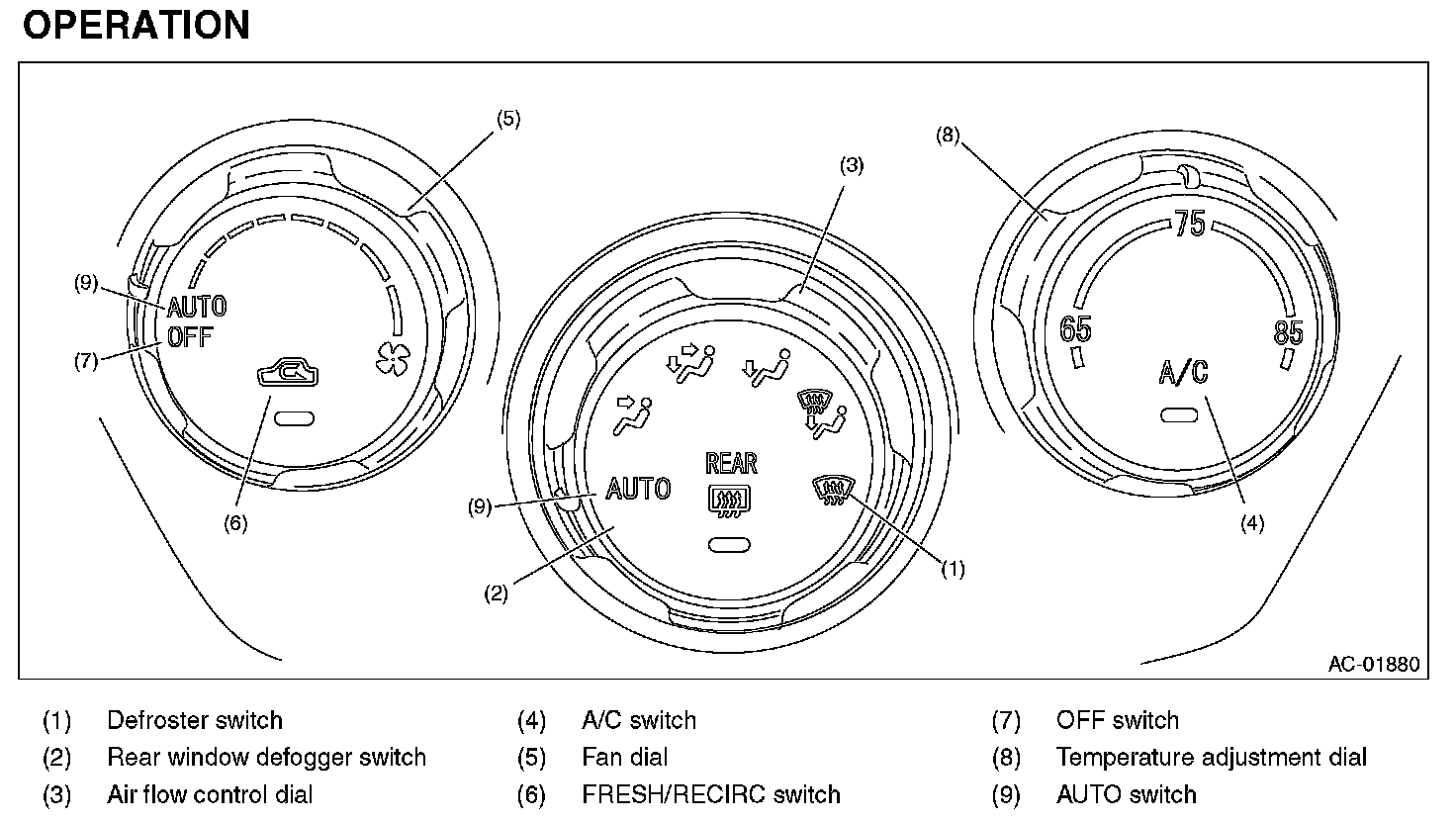

Operation:






1. A/C CONTROL PANEL SELF-DIAGNOSIS

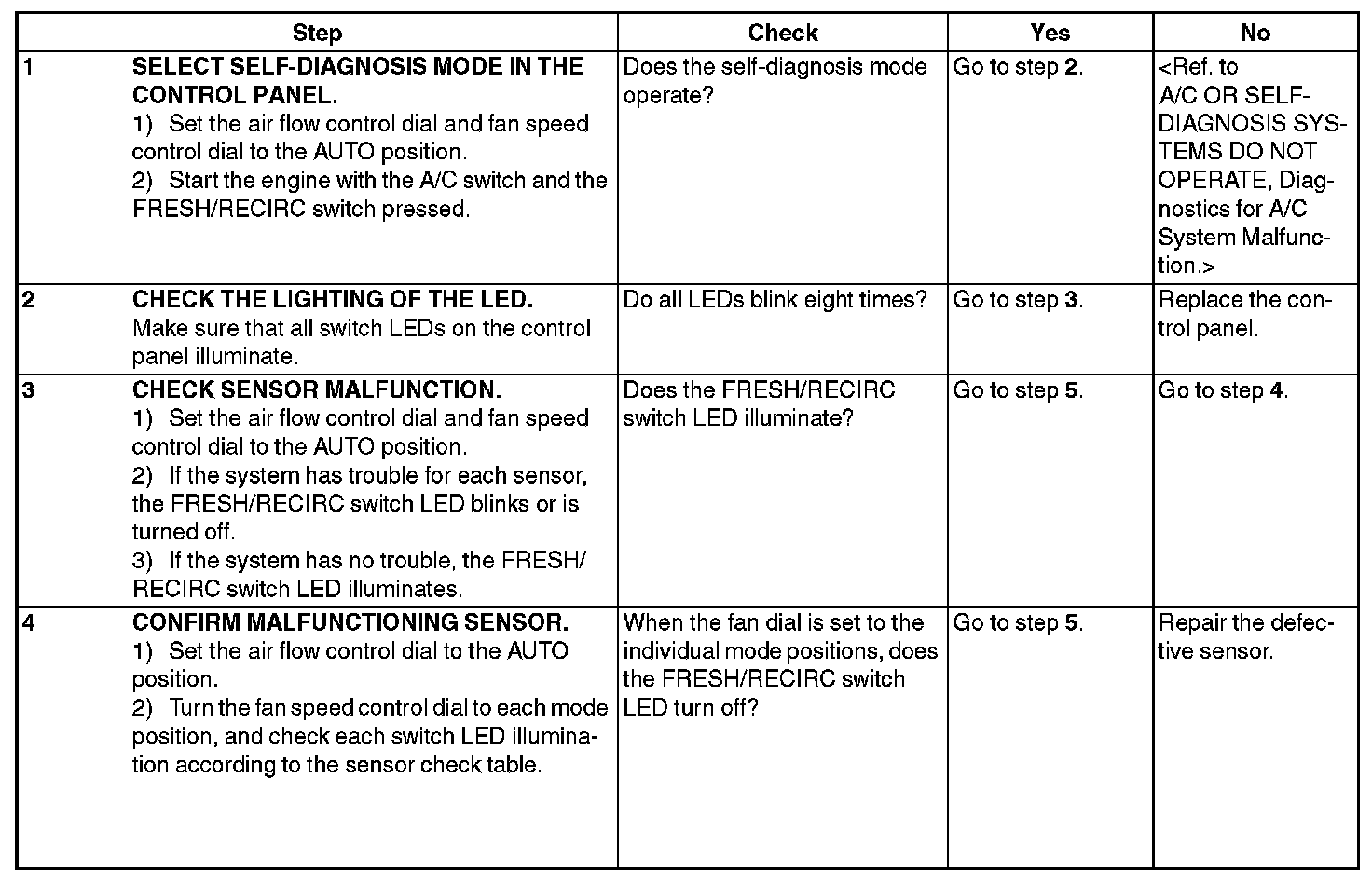

Step 1-4:

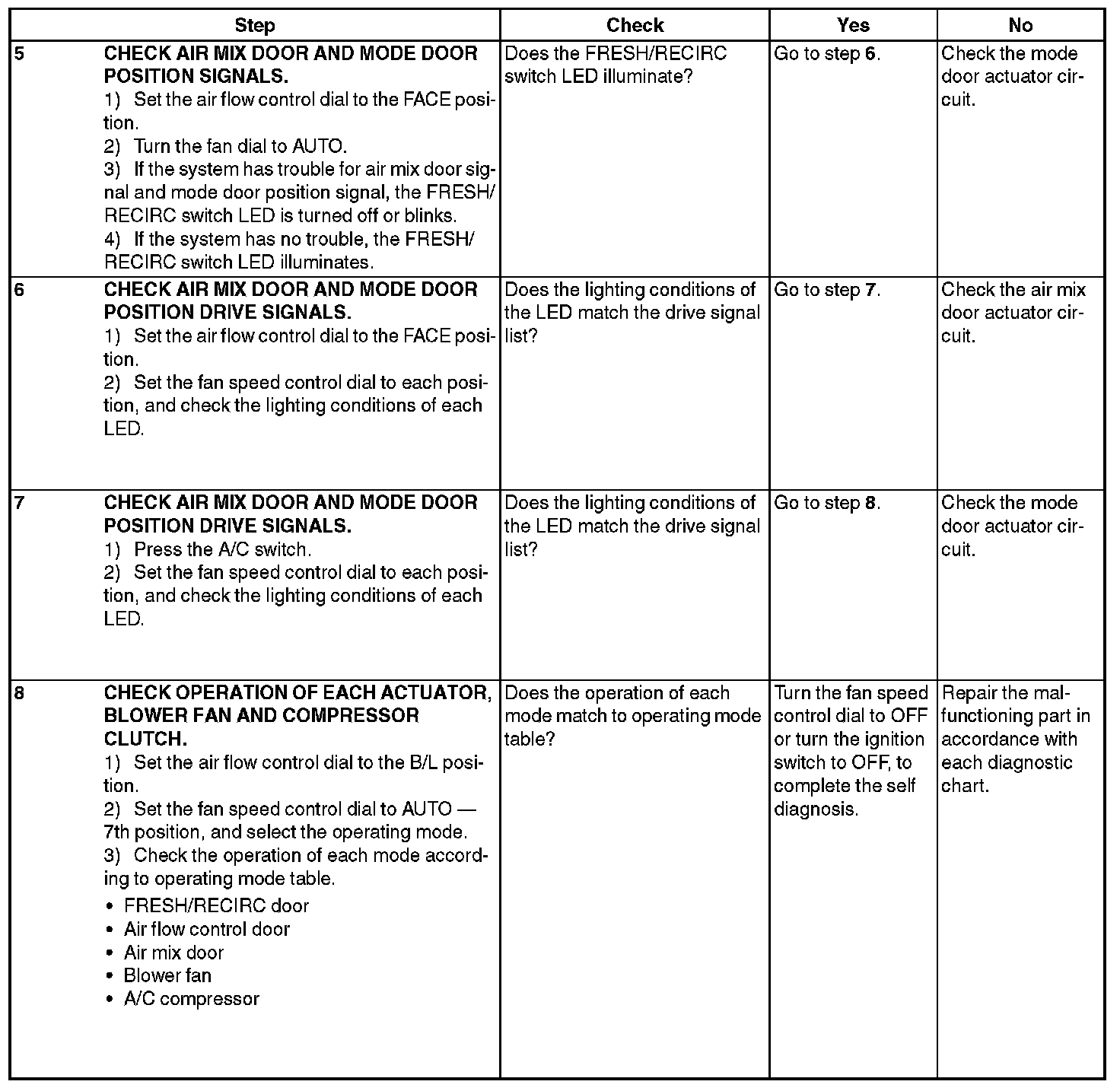

Step 5-8:

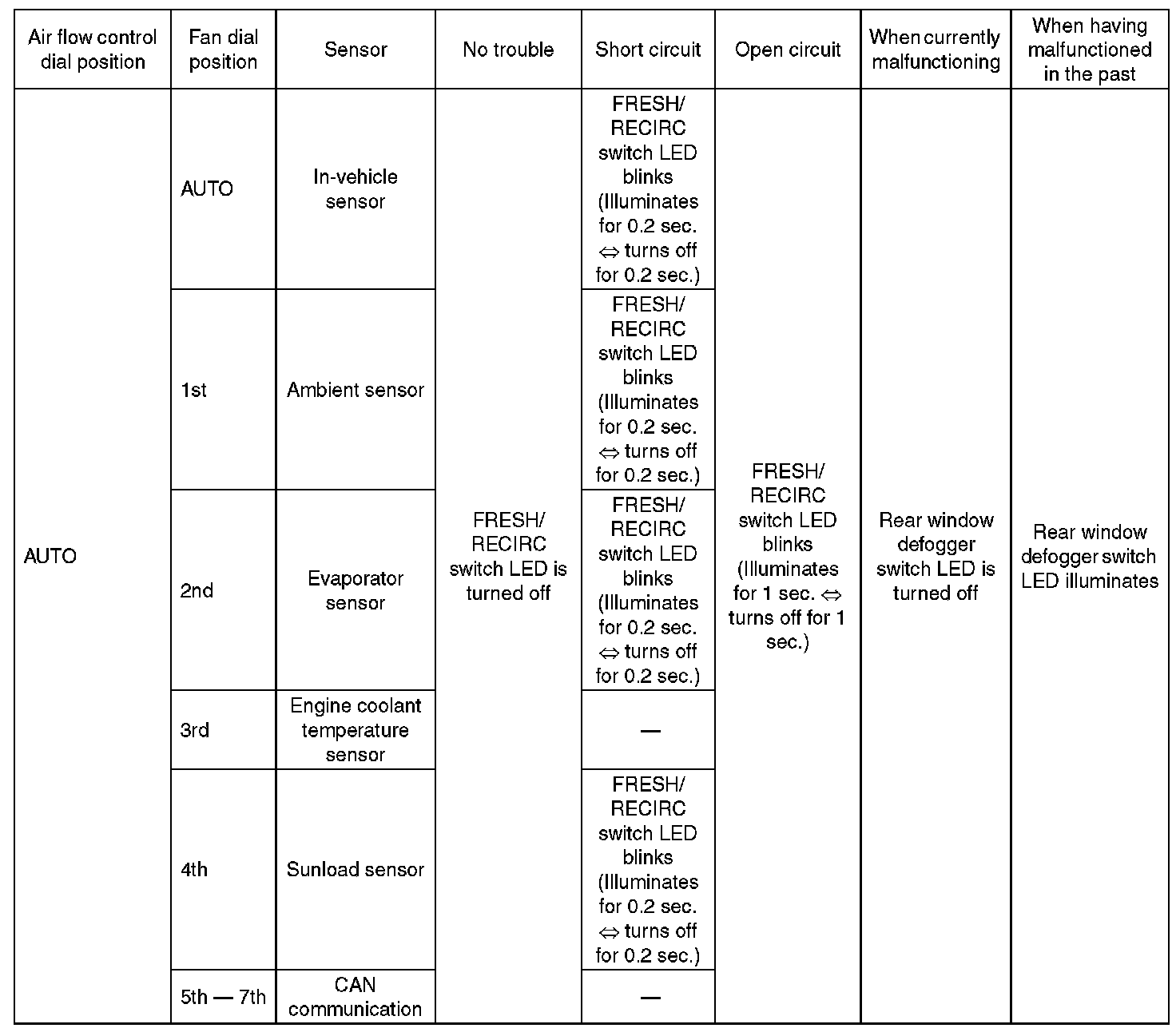

2. SENSOR CHECK TABLE

NOTE: When the sunload sensor check is performed indoors or in the shade, it could be diagnosed as having an open circuit. Always check the sunload sensor at a location exposed to direct sunlight.






3. OPERATING MODE TABLE

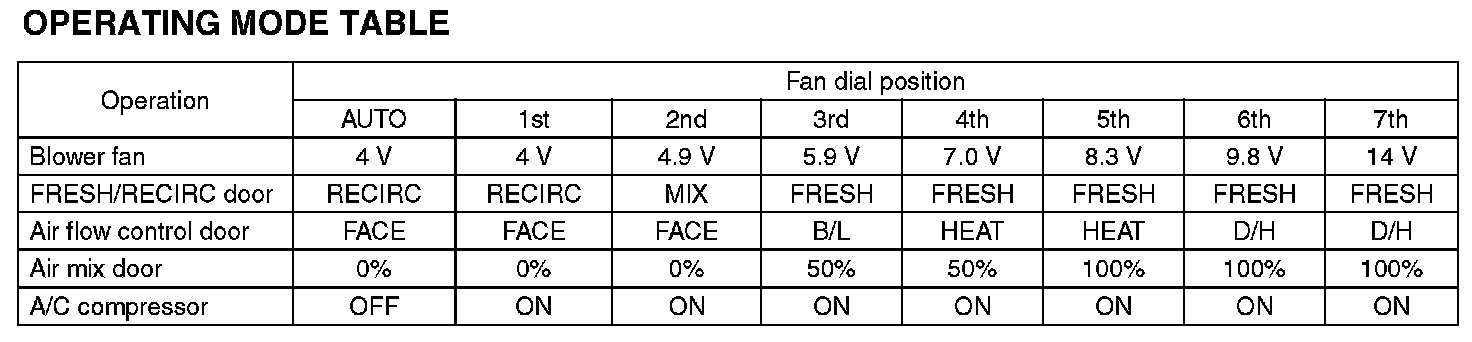

Operating Mode Table:






4. DRIVE SIGNAL CHECK TABLE

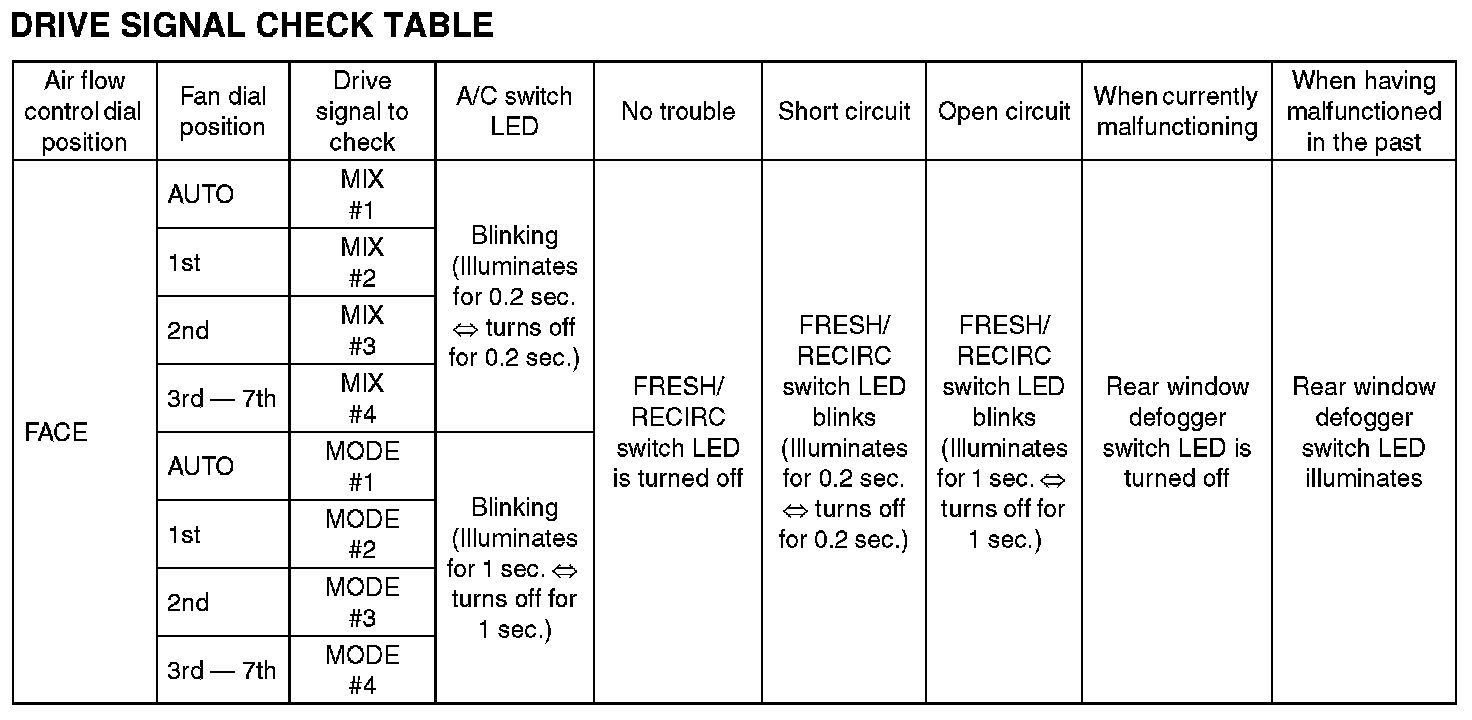

Drive Signal Check Table:
