Removal and Replacement

Combination Meter

REMOVAL

1. Disconnect the ground cable from battery.
2. Set the tilt steering at the lowest position. Pull out steering wheels with telescopic functions all the way.
3. Remove the instrument panel lower cover.
4. Remove the plastic hook (A), and detach the meter visor.

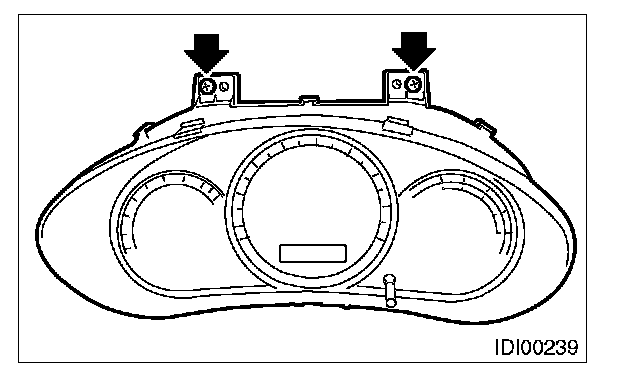

5. Remove the screws of the combination meter, and pull on the meter while tipping it towards yourself.






6. Disconnect the connector in the rear side of combination meter to remove meter.

CAUTION:
- Be careful not to damage the meter or instrument panel.
- Pay particular attention to avoid damaging the meter glass.

INSTALLATION

Install in the reverse order of removal.

CAUTION:
- Make sure the electrical connector is connected securely.
- Make sure that each meter operates normally.
- When the combination meter of model with immobilizer has been replaced, be sure to perform the registration of immobilizer.
