Airbag System (Diagnostics)
Airbag Control Module I/O SignalELECTRICAL SPECIFICATION

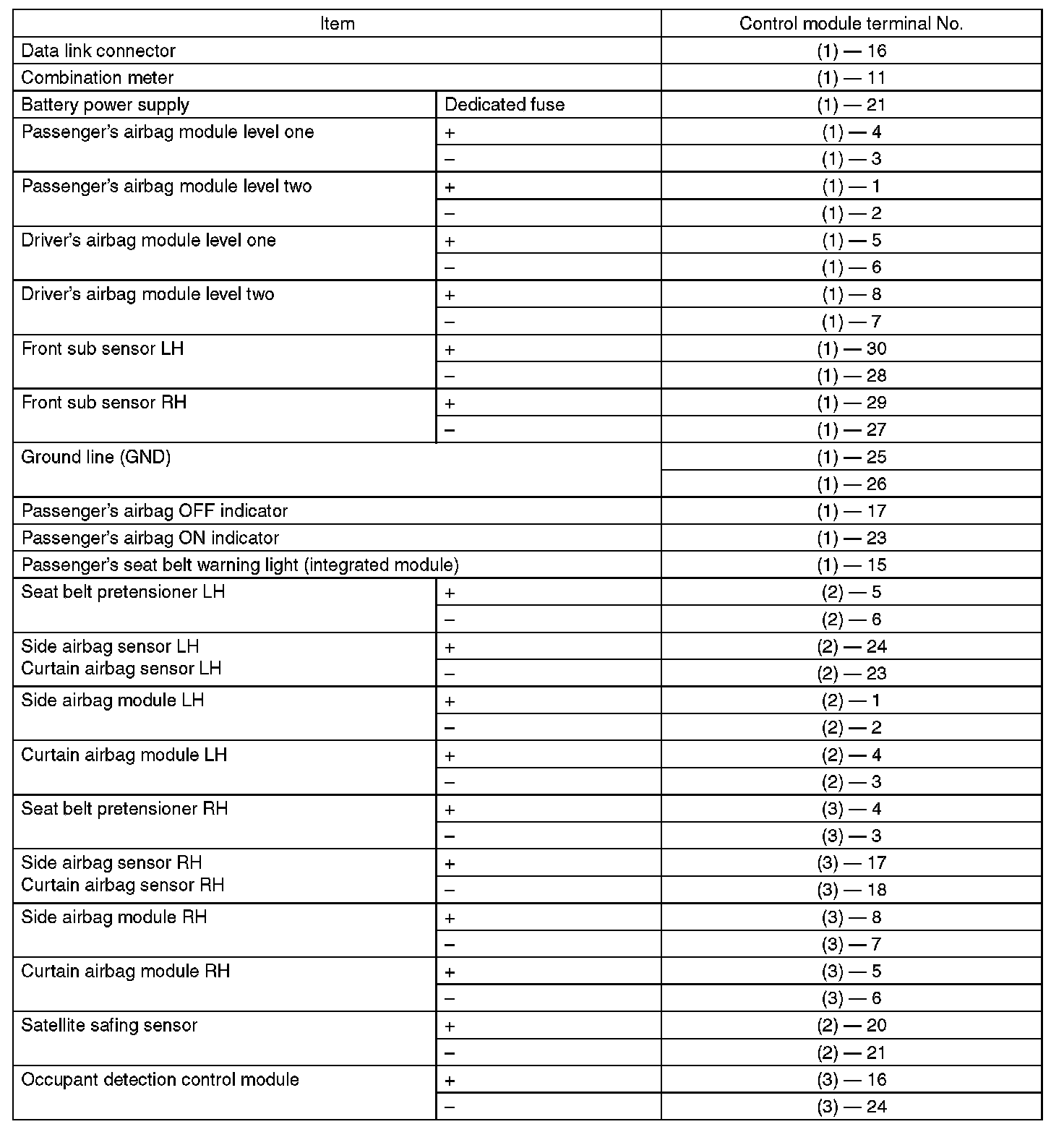

Airbag Control Module I/O Signal:

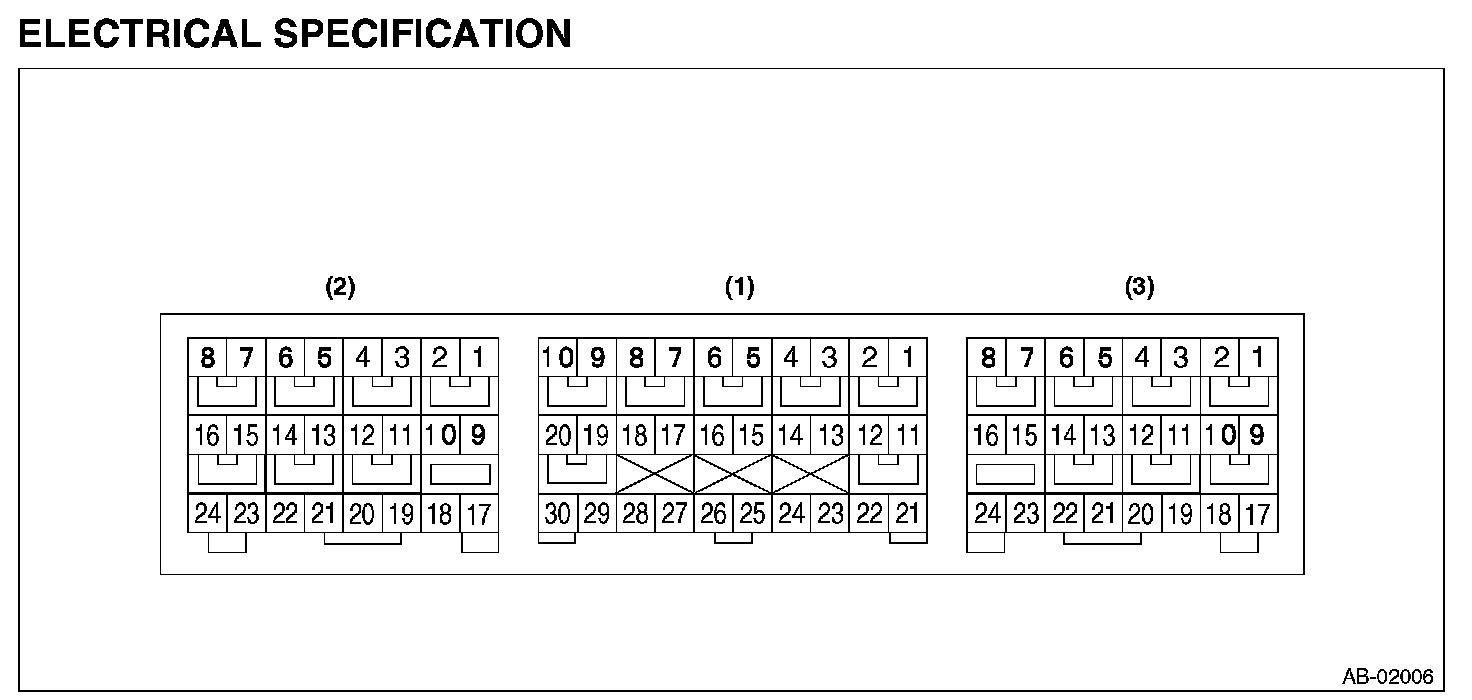

- Terminal numbers in airbag control module connector are shown in the figure.
- Airbag warning light illuminates when the connector is removed from airbag control module.
WIRING DIAGRAM
Refer to the WI section wiring diagram.
