Blower Motor Turns Around Early

BLOWER MOTOR TURNS AROUND EARLY

TROUBLE SYMPTOM:
- The blower turns even though the blower switch is not turned ON.
- The blower motor continues to turn at high speed. (Cannot be adjusted.)

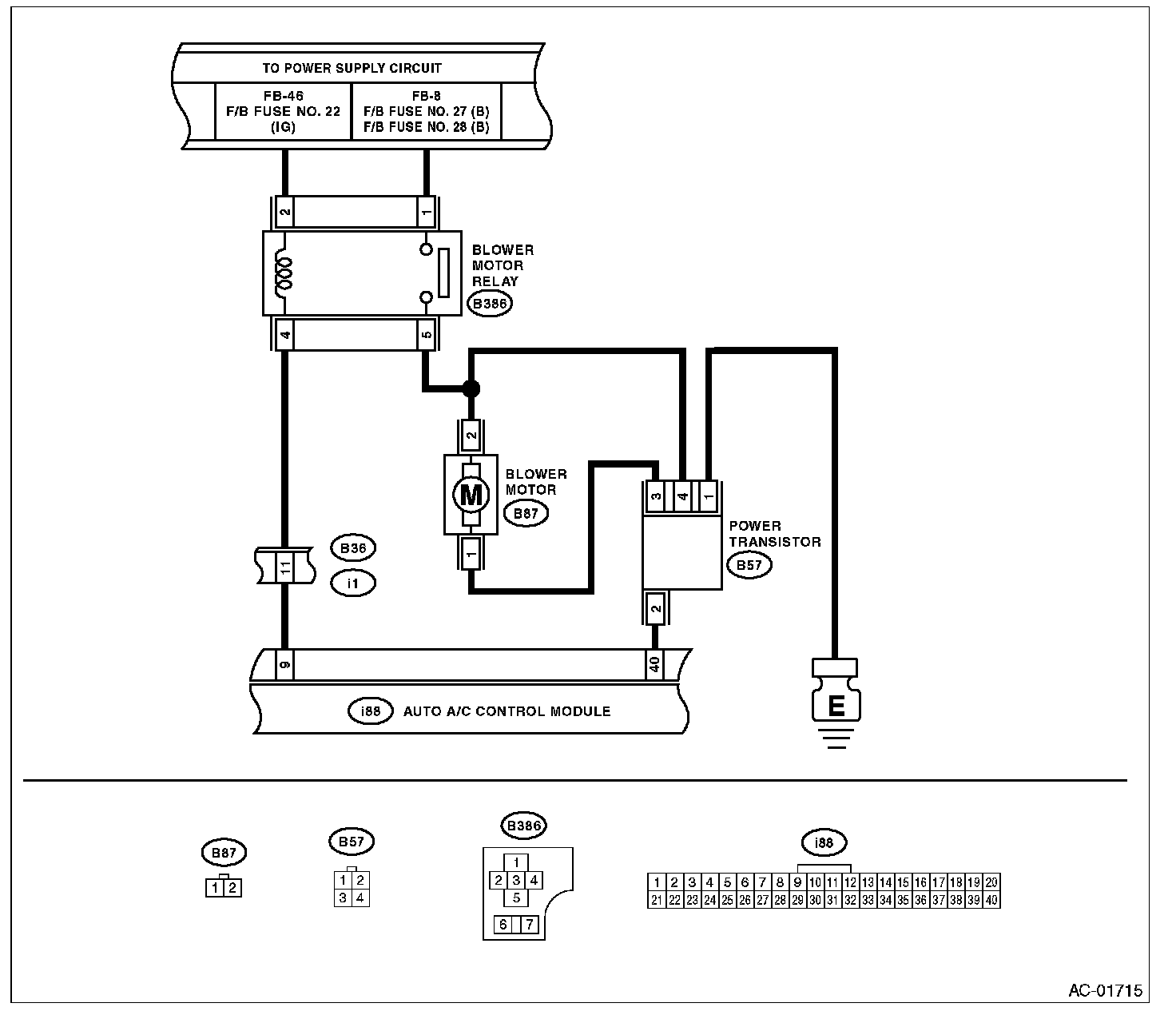

WIRING DIAGRAM:

Wiring Diagram:

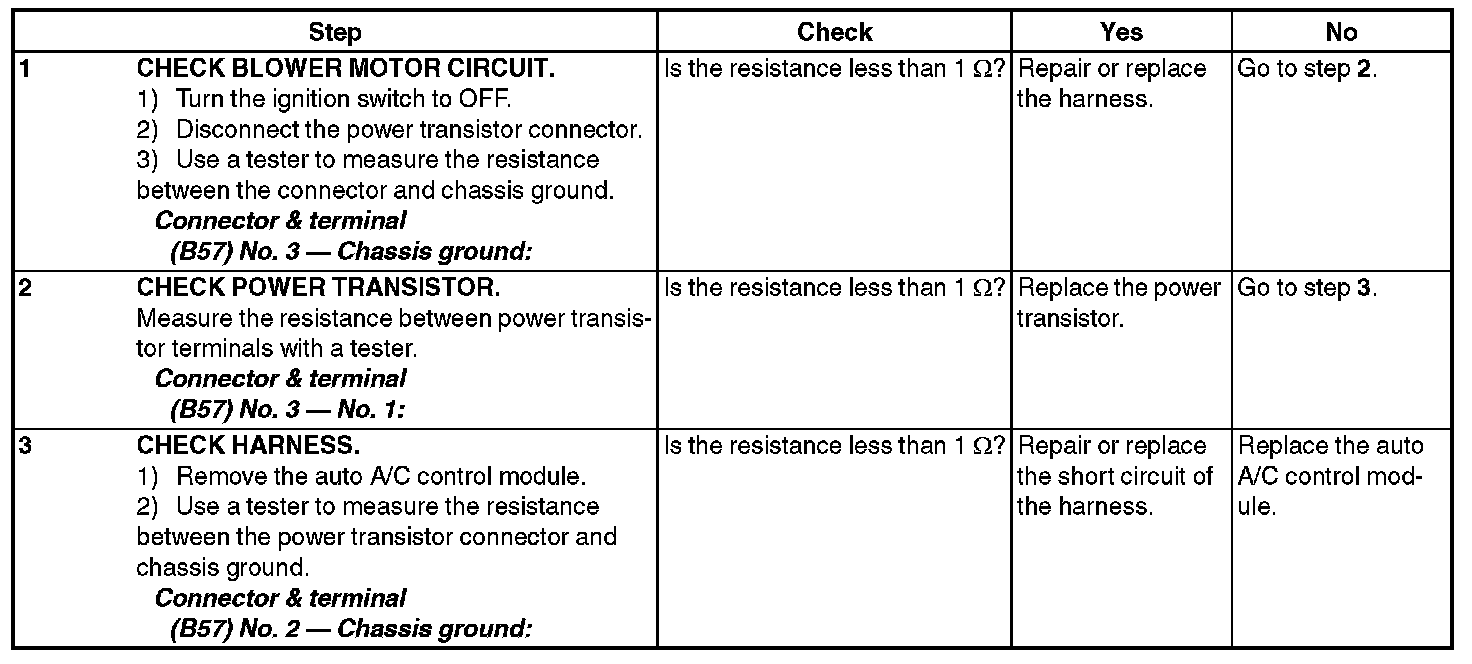

Step 1-3:
